Analox Ax50 Carbon Dioxide Detector (with optional oxygen sensor)

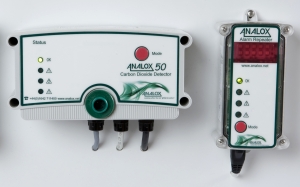

A fixed CO2 alarm, the Analox Ax50 Carbon Dioxide Detector is supplied in an IP65 rated housing.

A remote alarm repeater is included as standard with the Analox Ax50 Carbon Dioxide Detector.

Analyser specifications:

  Analyser type: Fixed
  Power: 230V AC, 110V AC, 9 to 24V DC (24hour battery backup option available)
  Display: Optional 4 digit Liquid Crystal Display
  Operating temp: -5 to +40oC
  Power consumption: <5 VA
  Output options: 4 to 20mA, 2 x relays, 0 to 1V
  Dimensions: 175 x 110 x 75mm (analyser) / 72 x 170 x 45mm (repeater)
  IP Rating: IP65 (apart from quick connect repeater which is IP43)
  Sounder: Minimum 75dbA
  Internal Strobe: Intensity >100cd
  Warranty: 2 years electrical
  Analyser approvals: CE, EN50270:1999, EN61000-6-3:2001+A11:2004, BS EN 61010-1:2001, IEC 61010-1(2ed), DIN 6653-2:2004 (TRSK313) and AS61010.1-2003 (Australia & New Zealand), CSA, Master Contract 239512, Certificate 1909026.


Sensor specifications:

  Gas detected: Carbon dioxide (optional oxygen sensor may be fitted)
  Measurement technique: Infra-red (oxygen - electrochemical)
  Range: 0.1 to 5% (oxygen - 0.1 to 25%)
  Resolution: 0.01% (oxygen - 0.1%)
  Alarm set points: 0.5 and 1.5% (optional alarm set points available) (oxygen - 18 and 19.5%)
  Response time: 45 seconds to T90 (oxygen - 15 seconds to T90)
  Warm up time: 40 seconds (oxygen - 10 seconds)
  CO2 Expected life: > 15 years warranty: 15 years
  O2 Expected life: 2 years warranty: 1 year


Datasheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
