Sensor specifications:
Gas detected:
Oxygen Analyser specifications:
Analyser type:
Fixed
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

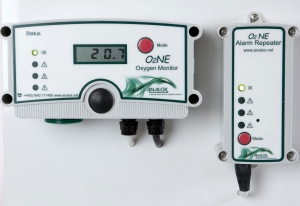

Analox AxO2NE Oxygen Detector
Mode of operation:
Electrochemical
Range:
0.1 to 25%
Alarm set points:
19.5% and 18%
Accuracy:
Better than ± 3% of FS over 0.1 to 25% O2
Response time:
15 seconds
Warm up time:
10 seconds
Resolution:
0.1% O2
Expected life:
2 years
Warranty:
1 year
Power:
230V AC, 110V AC, 9 to 24V DC
Power consumption:
<5 VA
Display:
4 digit LCD
Operating temperature:
0 to 40°C
Storage temperature:
-5 to 50°C
Outputs: (optional)
4 to 20mA, 2 x relays, 0 to 1V
Dimensions:
175 x 110 x 75mm (analyser) / 72 x 170 x 45mm (repeater)
IP rating:
IP65 (apart from quick connect repeater which is IP43)
Warranty:
2 years electrical
Analyser approvals:
EMC Directive 89/336/EEC (EN50270:1999, EN61000-
6-3:2001+A11:2004) Low Voltage Directive 73/23/EEC
(BS EN 61010-1:2001, IEC 61010-1(2ed)) AS61610.1-
2003 (Australia & New Zealand) CSA (cCSAus), Master
Contract 239512, Certificate 1909026
