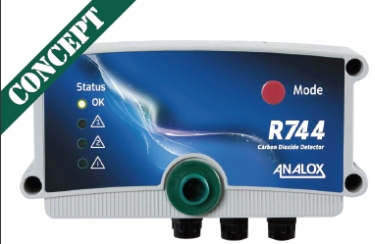

Analox R744 Carbon Dioxide Detector
|
This product is now obsolete.
Sensor specifications:
 Gas detected:
Carbon dioxide (R744)
Measurement technique:
Infra-red
Range:
0.1 to 5%
Resolution:
0.01%
Alarm set points:
0.5 and 1.5% (optional alarm set points
available)
Response time:
45 seconds to T90
Warm up time:
40 seconds
Warranty: >15 years
Detector specifications:
Detector type:
Fixed
Power:
230V AC, 110V AC, 9 to 24V DC
Display:
Optional 4 digit Liquid Crystal Display or
standard `tra.c light' LED
Operating temp:
-20 to +25 oC
Power consumption:
<5 VA
Output options:
4 to 20mA, 2 x relays, 0 to 1V
Dimensions:
175 x 110 x 75mm (detector) / 72 x 170 x 45mm (repeater)
IP Rating:
IP65 (apart from quick connect repeater which is IP43)
Sounder:
Minimum 75dbA
Internal Strobe:
Intensity >100cd
Warranty:
2 years electrical
Analyser approvals:
CE, EN50270:1999, EN61000-6-3:2001+A11:2004, BS
EN 61010-1:2001, IEC 61010-1(2ed), DIN 6653-2:2004
(TRSK313) and AS61010.1-2003 (Australia & New
Zealand), CSA, Master Contract 239512, Certificate
1909026.
|
Datasheet
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
