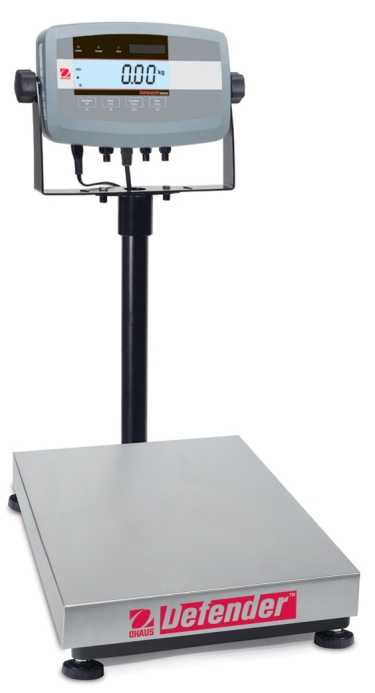

The OHAUS Defender 5000 Series with its feature-rich line of indicators, bases and bench scales, is ideal for receiving, packing, production and shipping and general commercial and industrial weighing applications.

The Defender 5000's applying features is a general purpose rugged stainless steel pans and painted steel frames as well as columns. Its durable ABS plastic indicator is a powerful weighing machine.

By enabling various modes of the Defender 5000 you receive the flexibility to customize its scale for a wider variety of specific applications at no additional cost or complexity. With rugged construction, yet comprehensive and intuitive multiple connectivity options, software operations, flexible mounting capabilities and optional NiMH battery operation, the Defender 5000 is your dependable one-product solution for an expandable range of weighing operations.

Standard Features Include:

  Five capacities that are popular: 15kg, 30kg, 60kg, 150kg and 300kg, 6 platform sizes, rectangular and square between 305 x 305 mm to 610 x 610 mm

  Stainless steel pans with painted carbon steel columns and columns, IP67 aluminum load cells approved by the OIML R60

  Scale displayed between 15,000 and 1:12,000(with temporary high resolution display) resolutions, approvable to 1:3000e

  ABS plastic indicator up to 1:30000 with displayed resolutions and drives up to 8 x 350 ohm load cells

  Reversible rear housing and orientation of cables for convenient, and flexible mounting capabilities with angle adjustable bracket

  High contrast single-line backlit LCD display with 25mm tall digits, 3-color check weigh LED and set point beeper

  Four function keys, raised, tactile membrane switches with menu navigation text and key-press beeper

  Multiple weighing units: oz, lb, g, kg, t and custom unit

  Multiple user-activated modes: counting (with auto-optimization), check weighing, percent weighing, dynamic animal weighing and a display hold

  AC line cord with universal switching power supply, 6-C dry battery operation or optional rechargeable NiMH battery

Downloads

Datasheet

Base Models

D15QR
D15HR
D30QR
D30HR
D60HR
D60QL
D60HL
D150QL
D150HX
D300QX
D300HX

Scale Models

D51P15QR1
D51P15HR1
D51P30QR1
D51P60QR1
D51P60HR1
D51P60QL2
D51P60HL2
D51P150QL2
D51P150HX2
D51P300QX2
D51P300HX2

Interface Options

AC Relay Kit, T51P/T51XW 80500720
DC Relay Kit, T51P/T51XW 80500727
RS422/485 Interface Kit, T51P/T51XW 80500731
RS232 Interface Kit, T51P/T51XW 80500733
Foot Switch 71173378

Power Options

Rechargeable Battery Kit, T51P/T51XW 80500729

Approval Options

Load cell cable sealing collar, T51P 80500737

Mounting Accessories

Wall Mount Kit, T51P 72200227
Wall Mount Kit, T51XW 80500735
Base Mount Kit, T51P 80500722
Column Mount Kit, 35cm, painted, T51 80500723
Column Mount Kit, 68cm, painted, T51 80500724
Column Mount Kit, 35cm, stainless steel, T51 80500725
Column Mount Kit, 68cm, stainless steel, T51 80500726

Compatible with all existing columns for Champs-CD/CW11/CD3X/CKW

Other Accessories

Load Cell Cable Adapter Kit 80500736
RS232 Cable, T31-51P to SF42 Printer 80500571
RS232 Cable, T31-51P to PC 25-pin 80500524
RS232 Cable, T31-51P to PC 9-pin 80500525
RS232 Cable, T31-51XW/CW11 to SF42 Printer 80500574
RS232 Cable, T31-51XW/CW11 to PC 25-pin 80500553
RS232 Cable, T31-51XW/CW11 to PC 9-pin 80500552
Compact Impact Printer, 42 Column SF42
Paper for SF42 printer (5 pack) 12101511
Ribbon for SF42 printer 12101512
