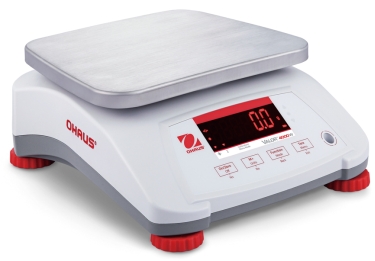

Ohaus Valor 4000 Compact Bench Scales
Water resistant, sanitary, dual display precision scale.
Legal for trade food scale that enhances safety, efficiency, and productivity
even in harsh environments!
The OHAUS Valor 4000 water proof food scale raises the bar and sets a new industry standard with the winning combination of
touchless operations, speed, and durability. Available in both stainless steel and plastic housing designs, Valor 4000 offers large
LED front and rear displays, puncture resistant keypads, and is NSF Certified, OIML/EC Type Approved and supports HACCP
Certified systems, making it the premiere scale for use in dry or washdown environments.
Standard Features Include:
 Approvals Ensure Operation in the Most Demanding Environments - With Legal for Trade certifications and food-safe
washdown design that's NSF Certified, OIML/EC Type Approved and supports HACCP Certified systems, Valor 4000 meets
the needs of the most demanding commercial applications in dry or wet environments.
Fast Speed, Practical Touchless Sensors, and Multiple Weighing Modes Enhance Productivity - Touchless sensors
combined with a half second stabilization time increase the productivity of weighing operations without sacrificing
accuracy. Additional checkweighing and percent weighing modes increase the functionality of this efficient scale.
The Flow-Thru Design Protects Valor 4000 in Harsh Environments - Safe to use in the weighing of liquids and in wet
environments, Valor 4000's IP68 flow-thru design ensures the scale is protected from damage from liquids.
Knife Proof Keypad Prevents Damage from Sharp Objects - Valor 4000 has a polycarbonate keypad that can endure
being touched by knives or sharp instruments used daily in demanding food preparation, processing and portioning
applications.
Approvals Ensure Operation in the Most
Demanding Environments
The Valor 4000 provides precise measurements with OIML / EC Type
Approval to meet or exceed the Class III accuracy requirements in
accordance with EC Directives and EN45501. Easy to clean and sanitary
design make Valor 4000 as NSF Listed/Certificated and support
HACCP - Certified systems.
Fast Speed, Practical Touchless Sensors, and
Multiple Weighing Modes Enhance Productivity
Don't sacrifice speed or precision for the other - with Valor 4000,
you will have both! Valor 4000 not only has a maximum external
resolution of 1:6,000/1:7,500, but it displays results in less than half
a second. Coupled with a touchless infrared sensor next to the back
display which allows a second operator to tare the scale with simply
a swipe of the hand without having to wait for the other operator to
press the Tare button, Valor 4000 was created to support speedy use.
In addition to standard weighing, Valor 4000 offers checkweighing,
accumulation and percent weighing modes.
The Flow-Thru Design Protects Valor 4000
in Harsh Environments
The flow-thru, water-proof design allows for weighing of liquid
components and can be used in harsh environments by channeling fluids
that may enter the housing to strategically located drain holes, ensuring the scale remains clean and operational. The internal
components and connections are silicone sealed to protect the scale from fluids and from condensation that may form inside
the scale from constant temperature changes in a typical processing environment. The scale can be easily washed off at the end
of each shift to keep it in sanitary condition and avoid the growth of bacteria from food contaminants.
Knife Proof Keypad Prevents Damage from Sharp Objects
The Valor 4000 has a highly durable 0.5 mm thick polycarbonate keypad which is impact and puncture resistant. Valor 4000's
smooth glossy surfaces easily repel stains, moisture, corrosive fluids and food contaminants, and stainless steel models offer
an extra layer of protection.
|
Application Modes
Weighing - Determine the weight of items in one or more weighing units - g, kg - use the 0.2g to 5g readability for weighing
additives, spices and yeast.
Percent Weighing - The Valor 4000 includes % weighing for recipe formulation and baker's percentages. Just weigh the flour
on the Valor's platform, capture the reference weight and all other ingredients can be weighed as a % of the flour weight,
making small batches of dough quick and easy to work up! Practical use in formulation, ingredients weighing and baker's
percentage.
Check Weighing - Use the bright red/yellow/green LED's to easily fill containers and packages by weight
- great for sorting, grading and portioning.
Accumulation - Keep a running total of all items by weight for recording long production run results.
Power and Portability
The 100-240 VAC universal power adapter can be operated from virtually any power
source and can automatically switch to adapt to different power and voltage lines.
When plugging your machine in is not an option, the built-in, rechargeable lead
acid battery will provide power for 50 continuous hours, ensuring uninterrupted
operation for more than a full week!
Adapter connection cover underneath the scale is spring loaded to ensure the
power receptacle is protected from the ingress of moisture, especially when the
scale is washed down.
Large Dual Displays
With bright front and rear LED displays, more than one operator can utilize
the scale for the same job. Even in less than optimal conditions, large, brightly
lit screens ensure you can see your results with ease even from a distance.
Dual displays also allow for quick and easy weighing in retail use. The large displays
on the front and back of the Valor 4000 allow it to be used in countertop
retail applications where the customer needs to see the weight on the platform.
Non-Slip Leveling Feet
Large fully rubberized feet are located at extreme corners of the scale to ensure
a wide stance and surface resistance that minimizes the risk of the scale sliding
or falling off smooth surfaces. The rubber of the feet extends to the shaft that
ensures no grooves are exposed when fully extended; a design that passes NSF
standards.
Certifications
The Valor 4000 is Certified to NSF/ANSI 169 Special Purpose Food Equipment and
Devices and Hygiene Requirements for the Design of Meat and Poultry Processing
Equipment.
The Valor 41…M Models are designed and engineered to meet stringent OIML
and NAWI Directive (Non Automatic Weighing Instruments)requirements for use
in legal and prescribed applications such as in standard industries, stores or QC
laboratories. The Valor 41…M Models have been designed and verified to meet
or exceed the Class III accuracy requirements in accordance with EC Directives
and EN45501.
Downloads
Datasheet
|
| Model | V41PWE1501T
V41XWE1501T | V41PWE3T
V41XWE3T | V41PWE6T
V41XWE6T | V41PWE15T
V41XWE15T |
| Capacity x Readability | 1.5 kg x 0.0002 kg 1500 g x 0.2 g | 3 kg x 0.0005 kg 3000 g x 0.5 g | 6 kg x 0.001 kg 6000 g x 1 g | 15 kg x 0.002 kg 15000 g x 2 g |
| Maximum Displayed Resolution (d) | 1:7,500 | 1:6,000 | 1:6,000 | 1:7,500 |
| Model | V41PWE1501T-M V41XWE1501T-M | V41PWE3T-M V41XWE3T-M | V41PWE6T-M V41XWE6T-M | V41PWE15T-M V41XWE15T-M |
| Certified Capacity x Readability | 1.5 kg x 0.0005 kg 1500 g x 0.5 g | 3 kg x 0.001 kg 3000 g x 1 g | 6 kg x 0.002 kg 6000 g x 2 g | 15 kg x 0.005 kg 15000 g x 5 g |
| Certified Resolution | 1:3,000 | 1:3,000 | 1:3,000 | 1:3,000 |
| Weighing Units | g, kg |
| Application Modes | Weighing, Percent Weighing, Checkweighing, Accumulation |
| Keyboard | Four mechanical switches with polycarbonate overlay |
| Calibration | Digital external span calibration |
| Display | 7 segment, 6 digit, 20.5 mm / 0.8 in high red LED dual display |
| Display Indicators | Stability, Center of Zero, Net, Battery Status, IR sensor and Accumulation |
| Checkweighing Indicators | 3 LED (yellow, green,red) with configurable operation |
| IR Sensor | Rear side for Tare function |
| Tare Range | To capacity by subtraction |
| Zero Range | 4% -20% of Capacity |
| Stabilization Time | ≤0.5 second |
| Safe Overload Capacity | 150% of capacity |
| Operating Temperature Range | -10 ° C to 40 ° C, 10% to 90% relative humidity non-condensing |
| Construction | V41PW: Stainless steel platform, ABS housing V41XW: Stainless steel top housing and platform, ABS bottom housing |
| Power | 12V DC 0.84A, AC Universal adapter (100 -220V AC / 50 -60Hz) and built-in internal rechargeable lead acid battery included |
| Battery Operation | Typically 50 hours of continuous use with 12-hour full charge |
| Ingress Protection | IP68 Protection |
| Platform Size | 190 x 242 mm |
| Scale Dimensions (W x D x H) | V41PW: 256 x 280 x 121 mm V41XW: 256 x 288 x 124 mm |
| Shipping Dimensions (W x D x H) | 410 x 370 x 220mm |
| Net Weight | V41PW: 3.0 kg V41XW: 3.9 kg |
| Shipping Weight | V41PW: 4.0 kg V41XW: 4.9 kg |
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
