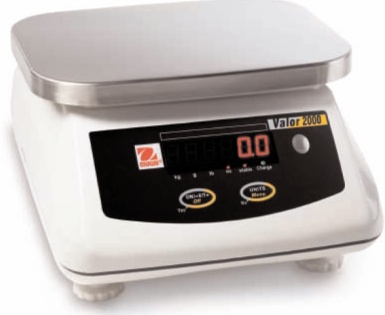

Ohaus Valor 2000 Compact Precision Scales
Water resistant, sanitary, dual display precision scale.
A durable, rapid-response food processing scale that enhances safety, efficiency, and productivity even in harsh environments!
The OHAUS Valor 2000 water proof food scale raises the bar and sets a new industry standard with the winning combination of speed and durability. Available in both stainless steel and plastic housing designs, Valor 2000 offers large LED front and rear displays, food safety and puncture resistant keypads, making
it the premiere value scale for use in dry or washdown environments.
Standard Features Include:
 Knife Proof Keypad Prevents Damage from Sharp Objects - Valor 2000 has a polycarbonate keypad that can endure contact with knives or sharp instruments used daily in demanding food preparation, processing and portioning applications.
The Flow-Thru Design Protects Valor 2000 in Harsh Environments - Safe to use in the weighing
of liquids and in wet environments, Valor 2000 is NSF Certified and has an IP68 flow-thru design which channels fluids that may enter the housing through strategically located drain holes, ensuring the scale remains clean and operational.
Fast Speed and Large Dual Displays Allows More than One Operator to Easily Work on Valor 2000 - With less than half a second stabilization time and front and rear LED displays, multiple operators can efficiently utilize one scale for the same job.
Stainless Steel Version Offered with Extra Check Weighing Mode - The Valor 2000 stainless steel models feature an easy to clean, rigid and protective 304 stainless steel top
housing with check weighing mode, expanding its functionality.
Knife Proof Keypad Prevents Damage from
Sharp Objects
The Valor 2000 is constructed with highly durable 0.5 mm
thick polycarbonate keypad which is impact and puncture
resistant. Valor 2000's smooth glossy surfaces easily repel
stains, moisture, corrosive fluids and food contaminants,
and stainless steel models offer an extra layer of protection.
Flow Thru™ Design Protects Valor 2000
in Harsh Environments
The flow-thru, water-proof design allows for weighing of liquid
components and can be used in harsh environments
by channeling fluids that may enter the housing to strategically
located drain holes, ensuring the scale remains clean
and operational. The internal components and connections
are silicone sealed to protect the scale from fluids and from
condensation that may form inside the scale from constant
temperature changes in a typical processing environment.
The scale can be easily washed off at the end of each shift
to keep it in sanitary condition and avoid the growth of bacteria
from food contaminants.
Fast Speed and Large Dual Displays Allow
More than One Operator to Easily Work
on Valor 2000
Not only does Valor 2000 display results in less than half
a second, but with its front and back displays, more than one
operator can use the scale for the same job, truly bolstering
productivity.
|
Stainless Steel Version Offered with Extra
Check Weighing Mode
The 304 stainless steel Valor 2000's provide an extra layer
of protection, as well as an additional checkweighing mode.
This ruggedly durable and easy to clean model enhances the
scale's usability for all checkweighing applications, including
sorting, portioning, and quality assurance.
Power and Portability
The 100-240 VAC universal power adapter can be operated from
virtually any power source and can automatically switch to adapt
to different power and voltage lines. When plugging in your machine
is not an option, the built-in, rechargeable lead acid battery will
provide power for 50 continuous hours, ensuring uninterrupted
operation for more than a full work week!
Adapter connection cover underneath the scale is spring loaded
to ensure the power receptacle is protected from the ingress
of moisture, especially when the scale is washed down.
Non-Slip Leveling Feet
Large fully rubberized feet are located at extreme corners of the scale
to ensure a wide stance and surface resistance that minimizes the risk
of the scale sliding or falling off smooth surfaces. The rubber of the
feet extends to the shaft that ensures no grooves are exposed when
fully extended; a design that passes NSF standards.
Simple Operation with largest LED display
Valor 2000® was designed with the basic weighing needs of the food
industry in mind. The LED display window is 20.5mm high, which
is bigger than most competitive products. It is exceptionally easy
to setup and operate, resulting in increased productivity.
Application Modes
Weighing - Determine the weight of items in the selected unit
of measure.
Check Weighing (V22XW only) - Use the bright red/yellow/green
LED's to easily fill containers and packages by weight - great
for sorting, grading and portioning.
Certifications
The Valor 2000 is Certified to NSF/ANSI 169 Special Purpose Food Equipment
and Devices and is USDA-AMS Accepted to NSF/ANSI /3-A14159-1
Hygiene Requirements for the Design of Meat and Poultry Processing
Equipment.
Downloads
Datasheet
|
| Model | V22PWE1501T
V22XWE1501T | V22PWE3T
V22XWE3T | V22PWE6T
V22XWE6T | V22PWE15T
V22XWE15T |
| Capacity (max) x Readability (d) | 1.5 kg x 0.0002 kg1500 g x 0.2 g | 3 kg x 0.0005 kg3000 g x 0.5 g | 6 kg x 0.001 kg6000 g x 1 g | 15 kg x 0.002 kg15000 g x 2 g |
| Maximum Resolution (d) | 1:7,500 | 1:6,000 | 1: 6,000 | 1:7,500 |
| Weighing Units | g, kg |
| Application Modes | V22PW: WeighingV22XW: Weighing, Checkweighing |
| Keyboard | V22PW: Two mechanical switches with polycarbonate overlayV22XW: Four mechanical switches with polycarbonate overlay |
| Calibration | Digital external span calibration |
| Display | 7 segment, 6 digit, 20.5 mm / 0.8 in high red LED dual display |
| Display Indicators | Stability, center of zero, net, battery status |
| Tare Range | To capacity by subtraction |
| Zero Range | -10% to 10% of Capacity |
| Stabilization Time | ≤0.5 second |
| Safe Overload Capacity | 150% of capacity |
| Operation Temperature Range | -10 ° C to 40 ° C , 10% to 90% relative humidity non-condensing |
| Construction | V22PW: stainless steel platform, ABS housingV22XW: Stainless steel top housing and platform, ABS bottom housing |
| Power | 12V DC 0.84A, AC Universal adapter (100 - 220V AC / 50 -60Hz) and |
| built-in internal rechargeable lead acid battery included |
| Battery Operation | Typically 50 hours of continuous use with 12-hour full charge |
| Ingress Protection | IP68 Protection |
| Pan Size | 190 x 242 mm |
| Scale Dimensions (W x D x H) | V22PW: 256 x 280 x 121 mm V22XW: 256 x 288 x 124 mm |
| Shipping Dimensions (W x D x H) | 410 x 370 x 220mm |
| Net Weight | V22PW: 3.0 kgV22XW: 3.9 kg |
| Shipping Weight | V22PW: 4.0 kgV22XW: 4.9 kg |
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
