Touchpoint Plus 19" rack is an easily configurable, rack control system that supports up to eight channels of gas detection with a further eight channels available through an optional 19" rack expansion unit. It accepts inputs from 2 or 3-wire mA or mV field devices.

Its intuitive, multilingual interface simplifies operation and reduces training requirements. The full colour traffic light style status indication provides clarity from a distance.

Touchpoint Plus 19" rack includes a comprehensive set of outputs as standard including common alarms and dedicated drives for remote audiovisual indicators.

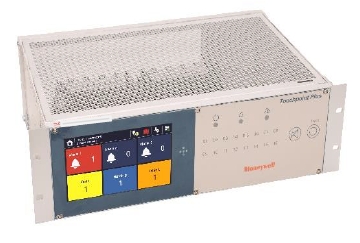

Touchpoint Plus 19" Rack Controller

Standard Supply: Touchpoint Plus 19" rack controller is supplied complete with pre-assembled I/O moduels, 7" colour LCD, and 19" rack housing.

Touchpoint Plus 19" Rack Expansion Unit

The optional expansion 19" rack expansion unit holds the same modules as the Touchpoint Plus 19" rack controller, but has no controller or user interface. The main module can accept power in and CAN connection only. The Touchpoint Plus 19" rack controller and the 19" rack exapansion unit support up to 16 channels of gas detections.

Data Sheet
Specifications
Technical Handbook
Quick Start Guide

Part Numbers

TPPLRC-V4NN TPPL 19" Rack controller supplied completed with 4xmV Master 2 and Master Fault.

TPPLRC-A4NN TPPL 19" Rack controller supplied completed with 4xmA inputs, including Master 1, Master 2 and Master Fault.

TPPLRC-D4NN TPPL 19" Rack controller supplied completed with Master 1, Master 2 and Master Fault.

TPPLRC-V4SN TPPL 19" Rack controller supplied completed with 4xmV inputs, 12 programmable relays.

TPPLRC-A4SN TPPL 19" Rack controller supplied completed with 4xmA inputs, 12 programmable relays.

TPPLRC-D4SN TPPL 19" Rack controller supplied completed with 2xmA and 2xmV inputs, 12 programmable relays.

TPPLRC-V4S4 TPPL 19" Rack controller supplied completed with 4xmV relays, and with 4x repeated mA outputs.

TPPLRC-A4S4 TPPL 19" Rack controller supplied completed with 4xmA inputs, 12 programmable relays, and with 4x repeated mA outputs.

TPPLRC-D4S4 TPPL 19" Rack controller supplied completed with 2xmA and 2xmV inputs, 12 programmable relays, and with 4x repeated mA outputs.

TPPLRC-V8NN TPPL 19" Rack controller supplied completed with 8xmV Master 2 and Master Fault.

TPPLRC-A8NN TPPL 19" Rack controller supplied completed with 8xmA inputs, including Master 1, Master 2 and Master Fault.

TPPLRC-D8NN TPPL 19" Rack controller supplied completed with 4xmA and 4xmV inputs, including Master 1, Master 2 and Master Fault.

TPPLRC-V8SN TPPL 19" Rack controller supplied completed with 8xmV relays.

TPPLRC-A8SN TPPL 19" Rack controller supplied completed with 8xmA inputs, 12 programmable relays.

TPPLRC-D8SN TPPL 19" Rack controller supplied completed with 4xmA and 4xmV inputs, 12 programmable relays.

TPPLRC-V8DN TPPL 19" Rack controller supplied completed with 8xmV relays.

TPPLRC-A8DN TPPL 19" Rack controller supplied completed with 8xmA inputs, 24 programmable relays.

TPPLRC-D8DN TPPL 19" Rack controller supplied completed with 4xmA and 4xmV inputs, 24 programmable relays.

TPPLRC-V8D8 TPPL 19" Rack controller supplied completed with 8xmV relays, and with 8x repeated mA outputs.

TPPLRC-A8D8 TPPL 19" Rack controller supplied completed with 8xmA inputs, 24 programmable relays, and with 8x repeated mA outputs.

TPPLRC-D8D8 TPPL 19" Rack controller supplied completed with 4xmA and 4xmV inputs, 24 programmable relays, and with 8x repeated mA outputs.

Touchpoint Plus 19" Expansion Unit

TPPLRE-V4NN TPPL 19" Rack expansion unit supplied completed with 4xmV

TPPLRE-A4NN TPPL 19" Rack expansion unit supplied completed with 4xmA inputs

TPPLRE-D4NN TPPL 19" Rack expansion unit supplied completed with 2xmA and 2xmV inputs

TPPLRE-V4SN TPPL 19" Rack expansion unit supplied completed with 4xmV programmable relays.

TPPLRE-A4SN TPPL 19" Rack expansion unit supplied completed with 4xmA inputs, 12 programmable relays.

TPPLRE-D4SN TPPL 19" Rack expansion unit supplied completed with 2xmA and 2xmV inputs, 12 programmable relays.

TPPLRE-V4S4 TPPL 19" Rack expansion unit supplied completed with 4xmV programmable relays, and with 4x repeated mA outputs.

TPPLRE-A4S4 TPPL 19" Rack expansion unit supplied completed with 4xmA inputs, 12 programmable relays, and with 4x repeated mA outputs.

TPPLRE-D4S4 TPPL 19" Rack expansion unit supplied completed with 2xmA and 2xmV inputs, 12 programmable relays, and with 4x repeated mA outputs.

TPPLRE-V8NN TPPL 19" Rack expansion unit supplied completed with 8xmV Master 1, Master 2 and Master Fault.

TPPLRE-A8NN TPPL 19" Rack expansion unit supplied completed with 8xmA inputs, including Master 1, Master 2 and Master Fault.

TPPLRE-D8NN TPPL 19" Rack expansion unit supplied completed with 4xmA and 4xmV inputs, including Master 1, Master 2 and Master Fault.

TPPLRE-V8SN TPPL 19" Rack expansion unit supplied completed with 8xmV programmable relays.

TPPLRE-A8SN TPPL 19" Rack expansion unit supplied completed with 8xmA inputs, 12 programmable relays.

TPPLRE-D8SN TPPL 19" Rack expansion unit supplied completed with 4xmA and 4xmV inputs, 12 programmable relays.

TPPLRE-V8DN TPPL 19" Rack expansion unit supplied completed with 8xmV programmable relays.

TPPLRE-A8DN TPPL 19" Rack expansion unit supplied completed with 8xmA inputs, 24 programmable relays.

TPPLRE-D8DN TPPL 19" Rack expansion unit supplied completed with 4xmA and 4xmV inputs, 24 programmable relays.

TPPLRE-V8D8 TPPL 19" Rack expansion unit supplied completed with 8xmV programmable relays, and with 8x repeated mA outputs.

TPPLRE-A8D8 TPPL 19" Rack expansion unit supplied completed with 8xmA inputs, 24 programmable relays, and with 8x repeated mA outputs.

TPPLRE-D8D8 TPPL 19" Rack expansion unit supplied completed with 4xmA and 4xmV inputs, 24 programmable relays, and with 8x repeated mA outputs.

Accessories

TPPLOSDC SD Card

Spare Parts

TPPLSDPM UI PCB Module
TPPLSMPM Main PCB Module
TPPLSLTSM LCD + Touch Screen Module
TPPLSBPM Back Plane Module
TPPLSMAAI2 2x mA Input Module
TPPLSMAAI4 4x mA Input Module
TPPLSMAAI8 8x mA Input Module
TPPLSMAVI2 2x mV Input Module
TPPLSMAVI4 4x mV Input Module
TPPLSMAVI8 8x mV Input Module
TPPLSMACI4 2x mA + 2x mV Dual Input Module
TPPLSMACI8 4x mA + 4x mV Dual Input Module
TPPLSMAROC 12x Relays
TPPLSMAAO4 4x mA Output Module
TPPLORTU RS485 Modbus RTU interface board* only available with Touchpoint Plus 19" Rack controller
TPPLSDPM-RR UI PCB Module Modbus TCP and Web monitoring* only available with Touchpoint Plus 19" Rack controller
TPPR-V-0502 5A, 120W, 24 Vdc PSU
