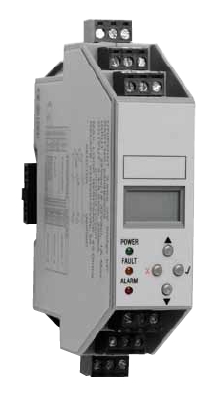

Zareba Unipoint Controller
The Unipoint is a simple DIN rail mounted
controller offering integrators a flexible and
low cost solution to incorporate flammable,
toxic or Oxygen gas detection into their
control systems.
Unipoint can be easily installed into any plastic
or metal enclosure for use indoor or outdoors
and even in potentially explosive atmospheres.
With the addition of one of the
Honeywell Analytic's range of flammable,
toxic or Oxygen detectors, systems may be
configured to monitor gases in a wide range
of applications from car parks and boiler
houses to analyser shelters or crane cabs in
offshore facilities.
Two versions of Unipoint are available; one
for mV bridge, catalytic bead type, flammable
gas detector and the other for any 2 or 3 wire
4-20mA type gas detector. Each Unipoint is
easily installed onto the DIN rail via a special
socket (provided) that also interconnects power
to adjacent units. With removable terminal
connectors, individual Unipoint controllers
can be easily changed without disturbing
other devices.
By clipping together multiple Unipoints small
to medium sized monitoring solutions can be
realised. Each unit includes built-in audiovisual
alarms, three programmable alarm relays and
a fault relay. Gas concentration and system
status is displayed on the backlit LCD and
each controller is fully user programmable
via an intuitive, push button operated menu
system. Configuration menus can be password
protected to prevent unauthorised access.
In addition remote inputs allow accept, reset
and inhibit of alarms without the need to open
the enclosure that the Unipoint is mounted in.
Unipoint's uncomplicated design makes it
ideal for applications where a simple method
of integrating gas detectors into a 3rd party
control system is required or as part of a small
standalone gas detection solution.
All Zareba gas detectors and
third party detectors may be used with Unipoint
subject to overall power requirements.
Typical Applications
 Small and medium integrated systems
Custom control cabinets and panels
Unmanned equipment rooms
Boiler houses
HVAC systems
Analyser houses
Car parks
Crane cabs
Laboratories
Data Sheet
|
User Friendly
Ultra-clear backlit display
System status codes
Built-in audiovisual alarms
Intuitive menu system
Simple pushbutton operation
Remote accept, reset and inhibit inputs
Easy to Install
TS35 ('top hat') DIN rail mounting
Removable terminal connectors
Easy access to all terminals
Additional units clip together
Comprehensive Operation
3 wire mV bridge, 2 and 3-wire 4-20mA inputs
DC operation
3 x alarm relays
1 x system fault relay
Field inhibit input (mA versions)
Flexible Operation
Fully user programmable scale, units
and calibration
Relays configurable as energised, de-energised,
latching or non-latching, alarm relay
on/off delay
Compatible with a wide range of gas detectors
|
Ordering Information
|
Instrument
2306B2000 Unipoint controller (mV input version)
2306B1000 Unipoint controller (mA input version)
Accessories
ZDINPSUX1 DIN rail mounted PSU. Input: 85-265Vac, 50/60Hz. Output: 24Vdc, 1A CSA, UL/UR, CE
approved
Spares
2306B3010 Unipoint terminal block (x2)
2306B3020 Unipoint DIN rail socket
2306B3030 Unipoint power connector
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
