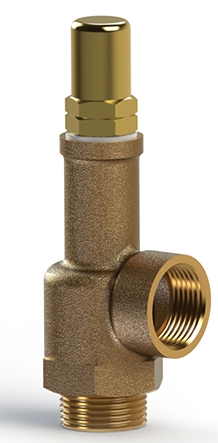

Gresswell Valves FIG134 and FIG134EL General Purpose Pressure Relief Valves
A range of relief valves, the Gresswell FIG134 is used frequently for preventing safe pressures being exceeded in pressurised systems.
The valve lift is proportional to the system over pressure. The FIG134 is commonly used for air, oil, gases and steam, where high discharge rates are not desirable in thermal and pipeline relief applications.
Size Range:
 DN15 TO DN100 (½" TO 4")
Pressure Range:
DN15 (½") - DN25 (1") = 0.7 bar.g (10 psi) to 22.5 bar.g (326 psi)
DN32 (1 ¼") - DN50 (2") = 0.7 bar.g (10 psi) to 20 bar.g (290 psi)
DN65 (2 ½") - DN100 (4") = 1.0 bar.g (15 psi) to 15 bar.g (218 psi)
Pipe Connections:
Available either screwed or flanged to suit customer's connection requirements.
Features and Benefits:
Able to accommodate customer's connection requirements.
Full Cat IV PED approval.
Quality assurance approved to BS EN ISO 9001: 2008.
Testing:
All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.
Flow Substance:
Liquid
Steam
Gas
|
Applications:
Vented systems and unvented systems
Liquid pump relief, pipeline and vessel protection.
Steam boiler, pipeline and vessel protection.
Compressor, pipeline and receiver protection.
FIG134EL (only):
Steam boiler, pipeline and vessel protection.
Compressor, pipeline and receiver protection.
Pricing:
For pricing information, please fill out this Enquiry Form and
we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
|
|
|
|
|
