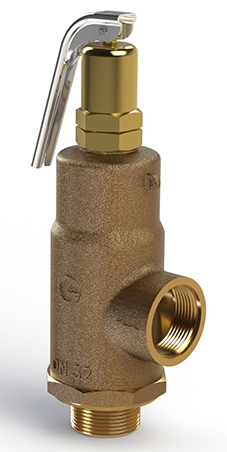

Gresswell Valves have produced the G100 to prevent excess pressure build up in systems providing maximum flow rates.

The G100 is suitable for use on steam, liquids and gases.

Size Range:

  Stainless Steel: DN15 to DN25 (½" to 1")

Pressure Range:

  0.3 Bar.g (4 PSI) TO 27.59 Bar.g (400 PSI)

Pipe Connections:

  Female x female.
  Inlet: Threaded 'G' BSP Male to BS EN ISO 228/BS 2779.
  Outlet: Threaded 'Rp' Parallel Female to BS 21/BS EN 10226/ISO 7.
  Alternative thread standards, i.e. taper or NPT are available upon request.
  Flanged connections also available. Most flange standards can be accommodated.

Features and Benefits:

  Gresswell Valves are quality assurance approved to BS EN ISO 9001: 2008 and manufactured in accordance with BS EN ISO 4126-1 & BS6759.
  Full Cat IV PED approval.
  The G100 range of valves are ideal for handling compressible material but it must be noted... they are not suitable for liquids.
  Clear operating and maintenance instructions are supplied with each despatch.
  See data sheets for Discharge Capacities.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Data Sheet
G100 Discharge Capacities

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
