Gresswell Valves FIG550 Pedal Operated Globe Valves

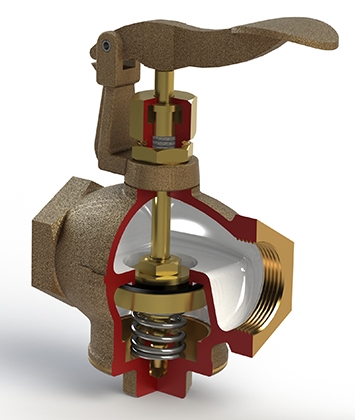

Gresswell have designed the FIG 550 as a straight through type valve that is held closed by the action of a built-in spring and soft seat.

Fluid is allowed to flow through the valve, as the valve is opened by hand or foot pressure on the level. The release of the pedal reverts the valve back to a closed position.

The Gresswell FIG550 is found most commonly in laundries and showers, but can also be used on various oils and fluids coupled with a suitable resilient seat.

Size Range:

  DN15 TO DN50 (1/2" TO 2")

Pressure Range:

  DN15 TO DN25 (1/2" TO 1") = 22.5 BAR.G (326PSI)
  DN32 TO DN50 (1 ¼" TO 2") = 20.0 BAR.G (290 PSI)

Pipe Connections:

  Female x female (BSP, BSPT, NPT)

Features and Benefits:

  Able to accommodate customer's connection requirements.
  Full Cat IV PED approval.
  Quality assurance approved to BS EN ISO 9001: 2008.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Liquid
  Steam
  Gas

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
