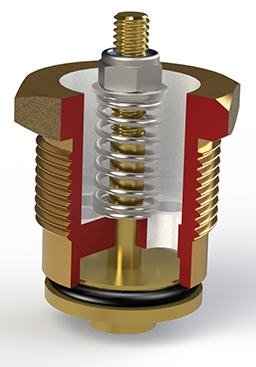

Gresswell Valves FIG400 Anti-Vacuum Valves


The prevention of collapse due to internal vacuum is the reason Gresswell have designed the FIG400 Anti-Vacuum Valve, as it is used to relieve unwanted vacuum conditions in storage tanks and cylinders.

FIG400 valves can also be used on steam systems to help condensate drainage. The Gresswell FIG400 can be supplied in brass, bronze and stainless steel.

Size Range:

  DN15 (1/2") TO DN25 (1") = Brass or Stainless Steel
  DN32 (1 ¼") TO DN100 (4") = Bronze or Stainless Steel

Pressure Range:

  Can be set to minus 28" HG

Pipe Connections:

  BSP, BSPT,NPT, Flanged

Features and Benefits:

  Able to accommodate customer's connection requirements.
  Quality assurance approved to BS EN ISO 9001: 2008.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Liquid
  Steam
  Gas

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
