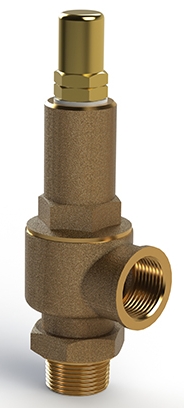

The Gresswell Valves FIG160 has been specifically built to be capable of handling liquids and uses top-guided cassette type assembly which can be taken away from the main body without altering the relieving pressure. This gives the operator the ability to clean the valve seating surfaces without the need to reset the valve.

Gresswell's FIG160 is a gunmetal-bodied relief valve with a brass trim, where as Gresswell's FIG161 is a gunmetal-bodied relief valve with a stainless steel seat ring valve and spindle.

Size Range:

  DN20 to DN100 (3/4" TO 4")

Pressure Range:

  DN20 (3/4") - DN25 (1") = 0.7 BAR.G (10 PSI) to 22.5 bar.g (326 psi)
  DN40 (1 ½") - DN50 (2") = 0.7 BAR.G (10 PSI) to 20 bar.g (290 psi)
  DN65 (2 ½") - DN100 (4") = 0.7 BAR.G (10 PSI) TO 15 BAR.G (218 PSI)

Pipe Connections:

  Available either screwed or flanged to suit customer's connection requirements

Features and Benefits:

  Able to accommodate customer's connection requirements.
  Full Cat IV PED approval.
  Quality assurance approved to BS EN ISO 9001: 2008.

Testing:

All Gresswell Relief Valves are given a hydraulic seat tightness test before leaving the factory and all valves are supplied pre-set. Special tests or witness testing can be arranged at extra cost.

Flow Substance:

  Liquid

Applications:

  Liquid pump relief, pipeline and vessel protection.

Pricing:

For pricing information, please fill out this Enquiry Form and we shall reply with a quotation to match your specifications. Unfortunately, we are unable to price these products over the telephone.
