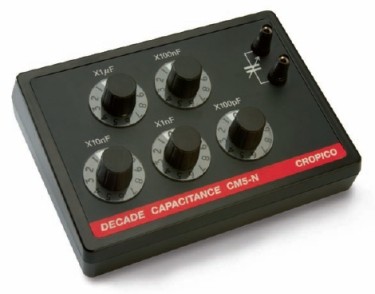

Cropico CM5-N Capacitance Compensation Box
To compliment the RM6-N decade resistance box


The Cropico CM5-N is a five decade capacitance box that compliments the range of resistance decades. Styled in its original ergonomic desk case, the CM5-N in any laboratory is a useful addition as well for educational and industrial use.

The capacitance required is set by means of rotary switches lined with skirted knobs and stators giving the dial setting a clear indication.

A combination of polystyrene and polycarbonate, the capacitors are generously rated with a good dissipation at a minimum of a 160 Vdc factor and a high insulation value.

A useful feature of this unit is the residual capacitance being compensated for the 10 x 100pF and 10 x 1nF dials so that the actual value of the dial setting appears at its terminals.

Specifications

  Capacitance Range 11.111uF in 100pF steps
  Max Operating Voltage 63V RMS (50Hz) 100V d.c
  Switches Contacts silver plated brass. Contact resistance 10mW. Positive click mechanism. Insulation 50,000 Megohm.
  Residual Capacitance dials set at zero: 35pF Max
  Accuracy: ±5%
  Connection: 4mm terminals
  Case High impact polystyrene anthracite grey RAL 7016
  Size 190 x 140 x 100 mm
  Weight 0.8kg

Cropico CM5-N Capacitance Compensation Box


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
