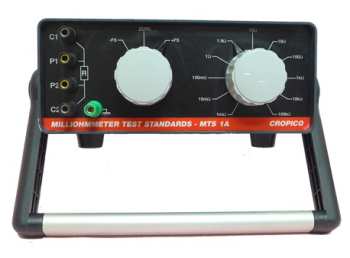

Cropico MTS Milliohmmeter
Milliohmmeter with 4 terminal test standard and +/- full scale values


  MTS1A: 1mOhm to 100kOhm and MTS2: 400 uOhm to 400 Kohm
  Temperature Supplied Complete with Calibration Certificate <=2 ppm/K
  Polarity Reversal Switch

The Milliohmmeter Test Standards are designed for the simple and easy calibration of low resistance ohmmeters and Kelvin / Thomson bridges. The true four terminal resistance values are switch selected and provision is made for + and - full scale values. A four terminal zero value may also be selected, thus making zero and full scale calibration of instruments simplicity itself.

Two models are available, the MTS1A which has 11 values from 1 mohm to 100 Kohm and the MTS2 which has 10 values from 400 micro-ohm to 400 Kohm.


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
