Cropico DO4000/4001 Micro Ohmmeter
HAND HELD, GENERAL PURPOSE, PORTABLE DIGITAL MICRO OHMMETERS COMBINING ALL THE FEATURES YOU MIGHT NEED

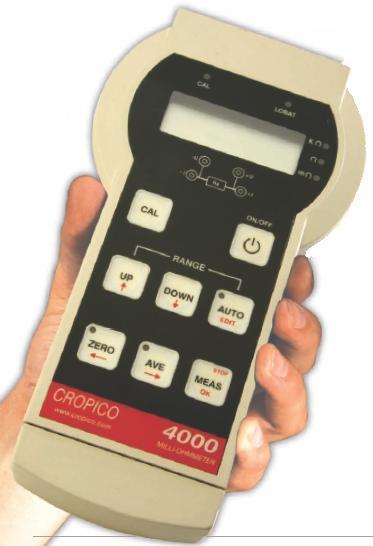

The D04000/4001 digital micro ohmmeters offer true portability without any sacrifice to accuracy or functionality.

These ruggedly constructed instruments are housed in a stylish plastic case with easy to use keyboard. The measured values are displayed on a large LCD screen which allows for ease of viewing.

Automatic or manual range selection is available and many advanced features are included. The table below will help with your selection needs as there are 3 models in the range.

Key Features

  True 4 terminal measurement eliminates lead resistance errors
  10 micro ohm resolution
  Measuring range from 4 milli ohm to 4 kilo ohm
  Measuring range from 4 milli ohm to 400 ohm
  True zero capabilities
  Digital Calibration
  Auto / Manual range selection
  Temperature measuring range -50 to +800 degC (DO4001 only)
  Automatic temperature compensation (DO4001 only)
  Open circuit lead warning LED
  100mA measuring current
  Auto power off to maximise battery life


Data Sheet

Specifications

Measurement

4 terminal Kelvin/Thomson principle eliminates errors due to lead resistance

Display

15mm LCD 4000 count with automatic decimal point and polarity indication

Ranges

6 automatic or manual selection with LED indication

Terminals

4mm safety sockets

Working Temperature

0 degC to +40 degC rel. humidity 80% max. non-condensing

Storage Temperature

-20 degC to +50 degC

Safety

EN 61010-1 EMC-EN 61236

Dimensions

215mm x 130mm x 55mm (W H D) approx
467mm x 374mm x 216mm packed in carton

Mass

0.8kg approx

Zero

Button to null measurement offsets

Protection

415 Vrms maximum at the measuring terminals will blow internal protection fuse

Calibration

Digital security code protected

Battery

Removable pack with 5 1.5V non-rechargeable batteries. Separate rechargeable pack, charger and docking station as optional extras

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
