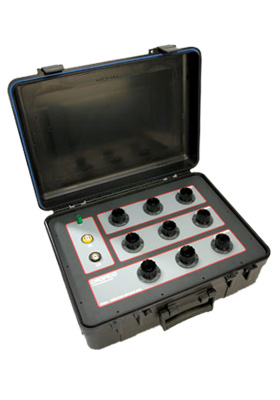

Cropico RH9A Decade Resistance Box
High resistance, high voltage decade resistance box with SP1 switch


  Max Voltage 5kv
  Accuracy ± 0.1%
  Range 1kΩ to 1TΩ

Designed using the Cropico high-quality SP1 switch, combined with specially selected resistors, this range of high ohm resistance decades is ideal for the calibration of insulation test sets having a voltage rating up to 5kV.

Housed in a rugged carrying case and available in either 3, 6, or 9 decades, the RH9A series covers the range 1kΩ to 1TΩ and is equally at home in the laboratory workshop or field application.

A single decade unit is also available with 10 switched values from 1kￜ to 1Tￜ.

Each RH9A Series unit is supplied with high voltage test leads (1m in length) and calibration certificate.


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
