Now available with IR and PID sensor options

Compact and rugged confined space entry monitor capable of detecting up to 5 gases.

Designed with confined space workers and fleet managers in mind, Gas-Pro offers detection of up to 5 gases in a compact, rugged solution capable of withstanding harsh environments and everyday use.

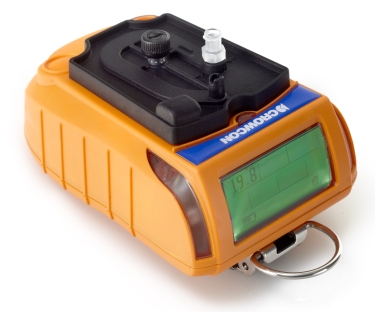

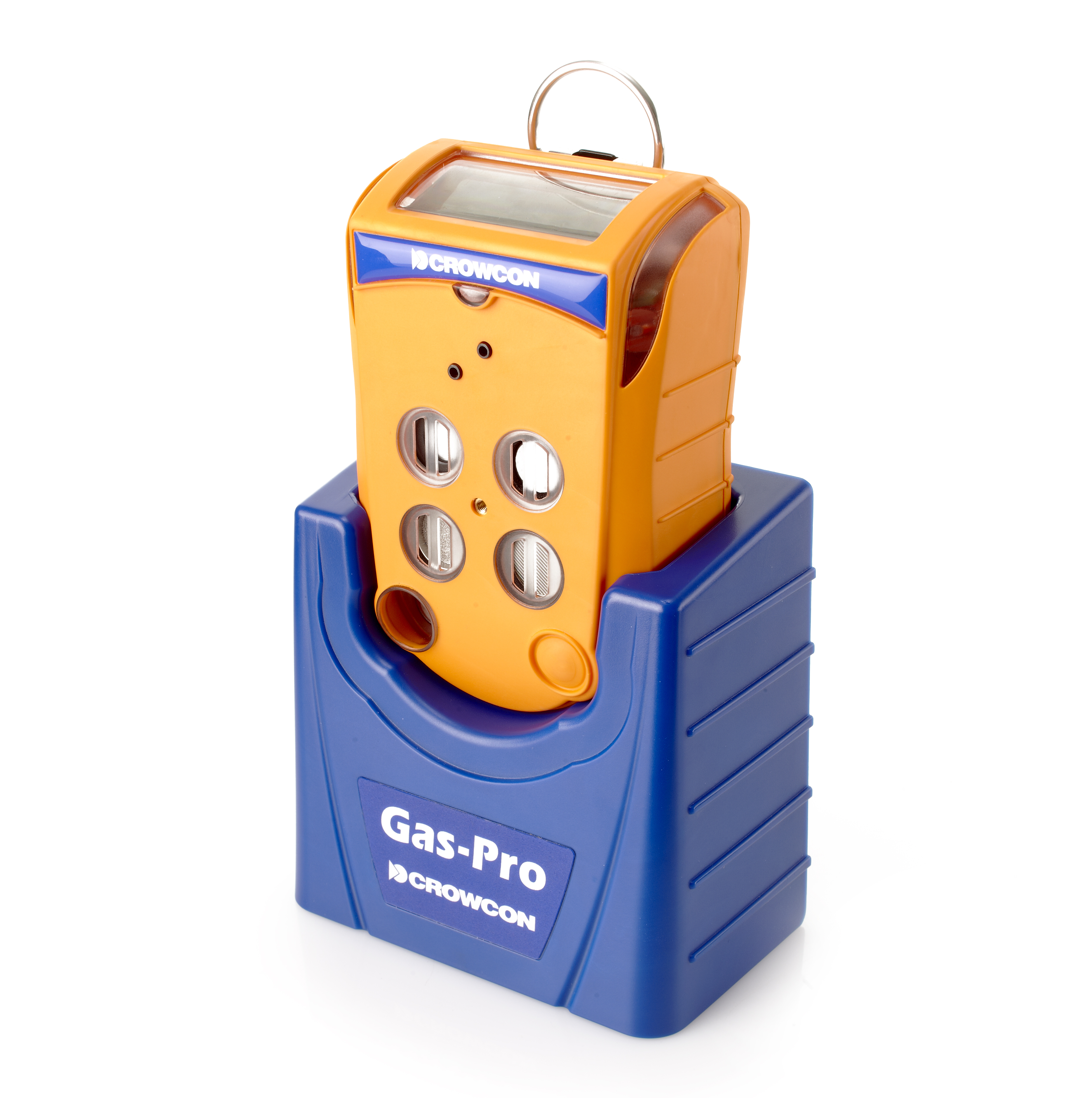

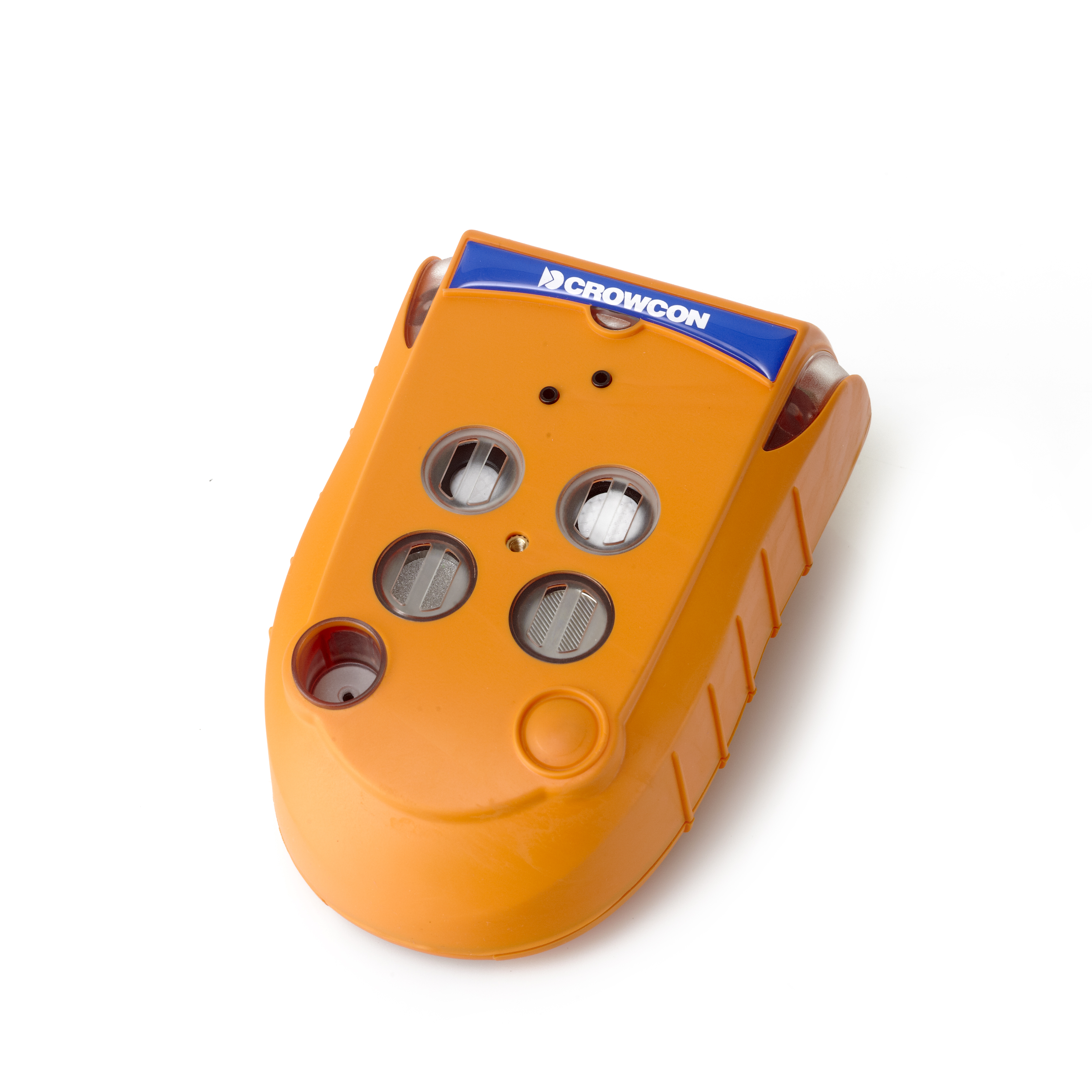

For larger views, please click on the small photos above.

Data Sheet

Gas-Pro Multigas Confined Space Entry Monitor

GPA-0001-XX-A 4 gas non-pumped no flow plate, CO/H2S/O2/CH4, multi-region PSU
GPB-0001-XX-A 4 gas non-pumped with flow plate, CO/H2S/O2/CH4, multi-region PSU
GPC-0001-XX-A 4 gas pumped with flow plate, CO/H2S/O2/CH4, multi-region PSU
GPA-0001-XX-C 4 gas non-pumped no flow plate, CO/H2S/O2/CH4, multi-region PSU & cradle
GPB-0001-XX-C 4 gas non-pumped with flow plate, CO/H2S/O2/CH4, multi-region PSU & cradle
GPC-0001-XX-C 4 gas pumped with flow plate, CO/H2S/O2/CH4, multi-region PSU & cradle
GPF-0002-XX-A 5 gas non-pumped with flow plate, CO/H2S/O2/CH4/CO2, multi-region PSU
GPP-0002-XX-A 5 gas pumped with flow plate, CO/H2S/O2/CH4/CO2, multi-region PSU
GPF-0002-XX-C 5 gas non-pumped with flow plate, CO/H2S/O2/CH4/CO2, multi-region PSU & cradle
GPP-0002-XX-C 5 gas pumped with flow plate, CO/H2S/O2/CH4/CO2, multi-region PSU & cradle

Sensors

SS0101 0-100% LEL (for all released flammable pellistor options)
SS0280 0-5% vol. carbon dioxide (CO2)
SS0300 Dual toxic CO 0-500ppm/H2S 0-100ppm
SS0500 0-25% Oxygen (2 Year)
SS0304 Sulphur dioxide 0-20ppm H2S filtered
SS0305 Chlorine 0-5ppm (diffusion only)
SS0309 Ozone 0-1ppm (diffusion only)
SS0306 Ammonia 0-100ppm
SS0310 Nitric oxide 0-100ppm (scheduled for release early 2013) (diffusion only)
SS0311 Nitrogen dioxide 0-20ppm
SS0308 Chlorine dioxide 0-1ppm (scheduled for release early 2013) (diffusion only)
SS0301 Carbon monoxide 0-2000ppm or 0-500ppm (H2S & SO2 filtered)
SS0302 Carbon monoxide 0-2000ppm (H2 filtered)
SS0303 Hydrogen sulphide 0-100ppm

Charging

CH0100 Multi-region power lead (includes CH0101 & CH0102)
CH0101 Multi-region power supply
CH0102 Charging lead
CH0103 USB communications lead (not powered)
CH0104 USB dual communication and power lead
CH0105 Gas-Pro charger cradle (no power)
CH0106 Vehicle charging adapter (for use with CH0102)
CH0107 5 Way multi-region power supply (use with 5 x CH0102)
CH0200 INMETRO multi-region power lead (includes CH0101 and CH0202)
CH0202 INMETRO Charging lead
CH0203 INMETRO USB communications lead (not powered)
CH0204 INMETRO USB communication and power lead

Sampling

AC0100 Gas-Pro pumped flow plate
AC0101 Gas-Pro non-pumped flow plate
AC0201 1m standard tubing (includes tube insert)
AC0203 3m standard tubing (includes tube insert)
AC0205 5m standard tubing (includes tube insert)
AC0210 10m standard tubing (includes tube insert)
AC0220 20m standard tubing (includes tube insert)
AC0230 30m standard tubing (includes tube insert)
AC0301 1m reactive gas tubing (includes tube insert)
SS0726 Exhaust bellows (on outlet for pumped sampling, calibration/gas testing)
AC0103 Calibration flow plate for PC Calibration (no magnet)

Accessories

AC0500 Tube insert (connection from tube to flow plate) x10
AC0511 Elbow tube insert x 10
AC0502 Water trap
AC0504 Hand aspirator bulb
AC0506 Chest harness plate
AC0507 Chest harness straps (2 per pack)
AC0508 Single strap
AC0509 Drop line 6m (includes D-ring clip)
AC0512 Ball float probe (select tubing length separately)
SS0724 Portables-Pro Admin User License activation†

Replacements

M07995 Gas-Pro multilingual CD manual
M07001 Gas-Pro multilingual quick start guide
M07264 Replacement packing box
AC0505 Alligator clip

Cases

AC0600 Gas-Pro hard shell case (includes foam insert with space for standard items) - contents not included
AC0610 Gas-Pro CSE kit (hard shell case with foam insert with space for Q-Test, 34 or 58L cylinder, power and comms cable, drop line, Gas-Pro, flow plate, filters, chest harness, straps and instructions) contents not included

Service Spares

SS0700 Sensor blank and seal
SS0701 Sensor blank seal x10
SS0702 Sensor seal (for dual toxic sensor) x10
SS0703 Full set of Gas-Pro screws and nuts
SS0704 Case Screws 4 off M3 x12
SS0705 Screws 7 off KB22 x6 (display and PCB)
SS0706 Display to main board connector and adhesive pad
SS0707 Display to main board connector adhesive pad x10
SS0708 Gas-Pro Crowcon 3D label
SS0709 Gas-Pro front (including 3D label) and rear case moulding assembly (including 4 screws)
SS0710 Gas-Pro spare battery
SS0711 Gas-Pro battery tray
SS0712 Gas-Pro main PCB including 4 screws (supplied in English with standard settings) add /A, /B or /C for the required board variant
SS0713 Gas-Pro sounder seal
SS0714 Vibrator
SS0715 Pump including gasket and screws
SS0716 Pump blanking assembly including gasket
SS0717 Gas-Pro display assembly (includes LCD, backlight, mounting bracket and screws)
SS0718 Servicing sounder bung (x10 off)
SS0719 Standard Sensor seal x10
SS0720 Replacement ATEX/IECEx Gas-Pro certification label (serial number needed at time of order)
SS0721 Replacement UL Gas-Pro certification label (serial number needed at time of order)
SS0722 Gas-Pro individual sensor clibration gas plate
SS0723 Replacement Calibration report (only if calibrated at Crowcon within 6 months, serial number required at time of order)
SS0725 Portables-Pro Service User License Activation
SS0729 Insulator for Gas-Pro B3 Board
SS0730 Insulator for Gas-Pro B2 Board
SS0731 Insulator for Gas-Pro B1 Board
SS0732 Ribbon Cable (display to main PCB connection)
SS0733 Flow plate gasket - Gas-Pro flow plate, non-pumped
SS0734 Flow plate gasket - Gas-Pro flow plate, pumped
SS0735 Flow plate gasket - Gas-Pro calibration flow plate, no magnet
SS0736 Gas-Pro Battery Adhesive Pads x10
