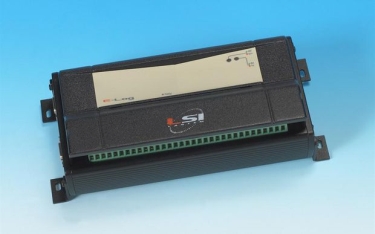

LSI LASTEM E-Log Environmental Data Logger



The E-Log Environmental Data Logger by LSI LASTEM is explicitly designed for environmental applications. The E-Log features the particular calculations and input from the environmental sensors when maintaining all day low power consumption.

An E-Log saves the sampled data from a sensor that is connected and also supports a variety of the communication protocols. LSI LASTEM have designed this product to be both durable and rugged, giving the assurance of prolonged data logging, even in very severe environments.

The input N.8 differential for the analog signals like resistance, current and voltage. The digital inputs N.4 programmable as on/off digital input or frequency with a serial interface. The input number can raise by using the SLAVE or MASTER design. The MASTER type E-Log may manage 99 total channels. ZIGbee radio is the network that allows connecting many LSI LASTEM devices such as radio sensors, R-log SLAVE unit and E-Log.

The E-Log stores the statistical elaborations with a time base from 1 second - 24 hours, including arithmetical average, standard deviation, instant values, integration time measurements, totalization, wind elaborations, resulting speed, prevailing direction, calm% and direction standard deviation. The memory structure of the this product is circular.

LSI LASTEM E-Log Environmental Data Logger

Models

  ELO105
  ELO305
  ELO310
  ELO515

Downloads


Datasheet
Manual
Quick Start

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
