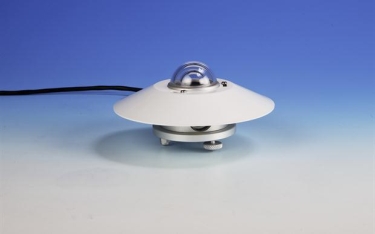

LSI LASTEM Pyranometers



Secondary standard pyranometers

LSI LASTEM have designed the Secondary standard pyranometer as a Radiometer for solar irradiance measurement. The instrument is designed according to ISO 9060 and WMO No. 8 (Part I, Chapter 7) standards. These sensors are classified as ISO 9060 Secondary Standard.

These pyranometers benefit from high-end accuracy, reliability and a rapid response time.

First Class Pyranometers (direct output)

The First Class Pyranometers (direct output) by LSI LASTEM are also designed to meet ISO 9060 and WMO No. 8 (Part I, Chapter 7) standards.

These sensors are classified as ISO 9060 First Class.

This pyranometer is the best compromise between quality and cost in irradiance measurement, giving the user a a total daily uncertainty of 5%, flat spectral response (300-3000 nm) and optimal temperature stability.

Downloads


Datasheet

LSI LASTEM Pyranometers

First Class Pyranometers (analogue, RS485 output)

This type of LSI LASTEM pyranometer have different types of outputs compared to the DPA154, but the same features of measurement.

With an external converter for analog output, the model DPA854 has been built. The model DPA855 benefits from analogue output electronics that are mounted inside the sensor body.



The model DPA870, in addition to the radiation, measures the air temperature inside the sensor. Contact temperature can also be measured by connection to the DLE125 probe.

Second Class Pyranometers

Classified as ISO 9060 Second Class, this range of LSI LASTEM pyranometers are both more compact and lighter than the higher class pyranometers.

For basic meteorological, agrometeorological and solar energy applications, this pyranometer is very suitable.

Ordering Information


Secondary standard pyranometers

DPA252
DPA852

Accessories

DYA035 Tilting arm for fixing DPA154, DPA252, DPA852, DPA855, DPA970 pyranometers to DYA049 collar
DYA034 Arm for fixing DPA154, DPA252, DPA852, DPA855, DPA970 pyranometers to DYA049 collar
DYA049 Mast-mounting device for 45-65 mm pipe
DEA852 Signal amplifier for Pyranometers. Output: 0/420 mA, 0/15 V Power consumption: output + 10 mA Power supply 1030 Vac/dc. Requires DWAxxx cable
DEA854 Same features as DEA852. Connection: free wires terminal
DPA250 Ventilation unit for DPA252 Power supply: 12 Vdc Operative temperature: -4070C

First Class Pyranometers (direct output)

DPA154

First Class Pyranometers (analogue, RS485 output)

DPA854
DPA855
DPA870

Accessories

DYA035 Tilting arm for fixing DPA154, DPA251.1, DPA252, DPA855, DPA870 to DYA049 collar
DYA034 Arm for fixing DPA154, DPA251.1, DPA252, DPA855, DPA870 to DYA049 collar
DYA049 Mast-mounting device for 45-65 mm pipe
DEA852 Signal amplifier for Pyranometers. Output: 0/420 mA, 0/15 V Power consumption: 10 mA+output Power supply 1030 Vac/dc. Requires DWAxxx cable
DEA854 Same features as DEA852 Connection: free wires terminal
DWA510 Cable L = 10 m for DPA854
DWA525 Cable L = 25 m for DPA854
DWA526 Cable L = 50 m for DPA854
DWA527 Cable L = 100 m for DPA854
DWA710 Cable L = 10 m for DPA855-870-863-873
DWA725 Cable L = 25 m for DPA855-870-863-873
DWA726 Cable L = 50 m for DPA855-870-863-873
DWA727 Cable L=100 m for DPA855-870-863-873
DPA245 Occultation band for diffuse radiation (DPA154 only)
MG2251 7 pin free female connector

Second Class Pyranometers

DPA053
DPA863
DPA873

Accessories

DYA035 Tilt arm for Pyranometers
DYA032 Arm for fixing DPA053 to DYA049 collar
DYA049 Mast-mounting device for 45-65 mm pipe
DYA048 Plate for levelling DPA053 on DYA035 arm
DYA120 Radiation shield
DEA852 Signal amplifier for Pyranometers Output: 0/420 mA, 0/15 V Power consumption: 10 mA+output Power supply 1030 Vac/dc. Requires DWAxxx cable
DEA854 Same features as DEA852 Connection: free wires terminal
DWA510 Cable L = 10 m
DWA525 Cable L = 25 m
DWA526 Cable L = 50 m
DWA527 Cable L = 100 m
MG2251 7 pin free female connector



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
