LSI LASTEM 2-6m Masts For Sensors And Data Logger Installation



LSI LASTEM masts are very suitable for concrete plinths, ground or wall installation. These can be used for meteorological equipment installation as well as solar panels. All the masts are well equipped with grounding electrical protection.

The meteorological equipment includes an ELF box for the data logger and sensors. When the masts are fixed on the ground by the DYA021 tripod, it is always good to use the tie rods. When a DYA020 tripod is to be used on a concrete plinth, then it is known to use the tie rod only when a mast is above 3 meters.

The height and weight of the masts will vary from one model to another model in the LSI LASTEM range. The material of the mast is AISI304 stainless steel. The masts support the sensor arms, wind speed sensors and also the data logger.

The fixing surface of the LSI LASTEM masts is on the ground, wall and concrete plinth. The tie rods for the masts is 0 50mm wall installation. The accessories includes the collar for the joining of 2 masts, ground picket for a tripod, basements for the masts, arm for the mast installation on a wall and foldable system for the mast. The basement and tie rod sets are available in different meters.

Downloads


Datasheet

LSI LASTEM 2-6m Masts For Sensors And Data Logger Installation

Ordering Information


Masts

DYA005 - 1.5m Mast
DYA006.1 - 2m Mast
DYA010.1 - 3m Mast
DYA011.1 - 4m Mast
DYA009.1 - 5m Mast
DYA008.1 - 6m Mast

Accessories

DYA020 Tripod for masts 50 mm
DYA020.1 Set of n.3 anchoring bolts, 12mm for fixing tripods DYA020 on cement plinths
DYA021 Tripod for masts 50 mm
DYA023 Set of n. 3 pickets for DYA021
DYA019 Joint (it should be used with tie-rods set)

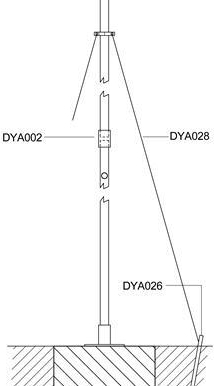

DYA002 Collar for jointing two masts 50 mm (it should be used with tie-rods set) DYA004 Arm for mast 50 mm wall installation (one couple is required)
Tie-rods set for masts 50 mm
DYA028 Set of 3 tie-rods and collar for fixing H.2-3 m pole
DYA028.1 Set of 3 tie-rods and collar for fixing H.4-6 m pole
DYA026 Sets of n.3 pickets for tie-rod fixing on the ground



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
