3M 7200 Plus Controller
 Centralised Graphic Display and Alarm Controller
Seamless Upgrade for Current Loop and Direct Catalytic Bead Detectors
MODBUS Interfacing and Output Relay Options
for Any Environment
Compatibility with 3M's Full Array of Gas Detection
Transmitters and Detectors
Hazardous Location Approval for Class I,
Division 2 Applications

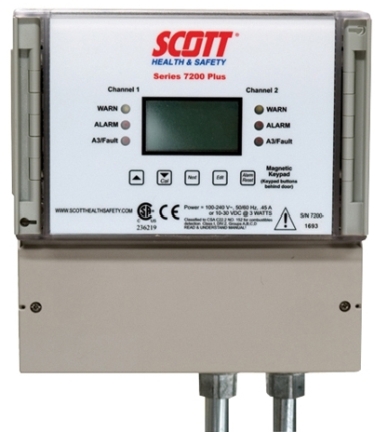

THE SCOTT SAFETY 7200 PLUS AND 7400 PLUS
CONTROLLERS are designed to provide simultaneous
display and alarm functions for up to four monitored
variables. A graphic LCD displays monitored data as bar
graphs and engineering units. Three adjustable alarm
levels are provided per channel. Relay outputs allow
control of beacons, horns and other alarm events.
The controllers are easy to configure and are user friendly.
Measurement ranges in engineering units, adjustable
alarm set-points, optional serial interfaces and
many other features offer flexibility to meet most
demanding applications.
The controllers utilise NEMA 4X rated enclosures and
are CSA certified to CSA C22.2 No. 152 for combustible
detection and Class I, Division 2, Groups A, B, C and D
hazardous locations. An optional RS-485 MODBUS® slave
port allows up to 128 controllers to be multidropped
onto a single data highway for interrogation by another
MODBUS master.
|
Other 7200 Plus options include six 5 amp SPDT
discrete alarm relays per channel, 4 to 20 mA outputs
and light stacks. Nonvolatile memory retains all
configuration data indefinitely.
DOWNLOADS
Datasheet
|
Ordering Information
|
Complete 7200 Plus Controller
093-0427 7200 Plus including 4-20 input board, NEMA 4X enclosure, audible alarm
093-0428 7200 Plus including direct cat bead input board NEMA 4X enclosure audible alarm
093-0429 7200 Plus 4-20 input board in a NEMA 7 enclosure
093-0430 7200 Plus Direct catalytic bead board input board in a NEMA 7 enclosure
093-0616 7200 Plus - 2 Channel, NEMA 4X, 4-20 mA Input Board, CSA approved
093-0617 7200 Plus - 2 Channel, NEMA 4X, Direct Catbead Input Board, CSA approved
Note: Direct catbead input boards can be configured for 4-20mA input Note: RS 485 output optional
Note: RS 485 output optional
7200 Plus Controller Components
093-0431 7200 Plus in NEMA 4X Enclosure
093-0432 7200 Plus in NEMA 7 Enclosure
093-0433 Dual Channel 4-20mA input
093-0434 Dual Bridge Sensor Input
093-0435 Discrete Alarm Relay Board (6, 5A Form C Relays)
093-0436 Dual 4-20 mA Output
093-0438 RS-232 / RS-485 MODBUS RTU Addressable Interface
093-0439 100db Piezo Audible Alarm (added to NEMA 4X Enclosure)
093-0440 Dual light stack (non-hazardous, general purpose; Amber/Red)
7200 Plus Controller Replacement Parts
093-0441 Replacement NEMA 4X Enclosure w/Cover
093-0442 Replacement NEMA 4X Door w/Graphic Overlay
093-0443 "Big Blue" Magnetic Wand for NEMA 7 XP Enclosure
093-0444 "Small Red" Magnetic Wand for NEMA 4X Enclosure
093-0445 Fuse, 2 AMP on Motherboard
093-0446 Motherboard Assembly PCB including Terminal Block and Fuse
093-0447 CD Readout / Microcontroller Assembly PCB Including Ribbon Cable
|
