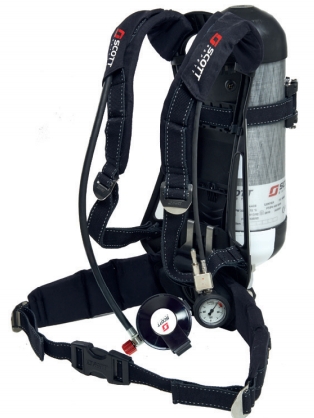

The 3M ProPak-FX-EZ-FLO is a Type 2 open circuit, self-contained, compressed air breathing apparatus. It consists of a back plate, padded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and demand valve.

The ProPak-FX-EZ-FLO can be configured in a number of different ways with various size single cylinders. There are also a range of variants available including Airline (AC), Split Demand Valve Coupling (SDC or Y2C), Quick Connect Option or Duo variants.

The ProPak-FX-EZ-FLO is used in conjunction with AV3000HT facemask and a choice of composite or steel cylinders.

APPLICATIONS

The ProPak-FX-EZ-FLO is specifi cally designed as a professional fi re fi ghting SCBA, but is also suitable for providing respiratory protection in any IDLH environment.

Datasheet
ProPak Range

ProPak-fx-EZ-Flo

2031988 PROPAK-fx-EZ-Flo (V2) Self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate with Kevlar and Pyrogard blend cylinder band and fully adjustable padded body harness with swivel movement waistbelt. Fully adjustable backplate can be simply moved to cater for different sized users. Two stage pneumatic system comprising EZ-Flo positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure 200/300 bar cylinder connector. Apparatus is CE Marked to EN137:2006 Type 2 Apparatus supplied less facemask, please order AV3000HT facemask seperately.

2031990 PROPAK-fx-EZ-Flo- AC (V2) ProPak-fx-EZ-Flo fitted with Airline attachment*
2031991 PROPAK-fx-EZ-Flo- SDC (V2) ProPak-fx-EZ-Flo fitted with Split demand valve
2031992 PROPAK-fx-EZ-Flo- SDC-AC (V2) ProPak-fx-EZ-Flo fitted with Split demand valve and Airline attachment*
2031995 PROPAK-fx-EZ-Flo- Y2C (V2) ProPak-fx-EZ-Flo fitted with Y-piece (2 CEN socket) in demand valve hose

ProPak-fx-EZ-Flo CBRN

2031997 PROPAK-fx-EZ-Flo- CBRN (V2) Self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate with Kevlar and Pyrogard blend cylinder band and fully adjustable padded body harness with swivel movement waistbelt. Fully adjustable backplate can be simply moved to cater for different sized users. Two stage pneumatic system comprising EZ-Flo positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure 200/300 bar cylinder connector. Apparatus is CE Marked to EN137:2006 Type 2 and BS8468-1 Apparatus supplied less facemask, please order AV3000HT facemask seperately.

2031979 PROPAK-fx-EZ-Flo- AC-CBRN (V2) ProPak-fx-EZ-Flo-CBRN fitted with Airline attachment*
2031980 PROPAK-fx-EZ-Flo- SDC-CBRN(V2) ProPak-fx-EZ-Flo-CBRN fitted with Split demand valve
2031981 PROPAK-fx-EZFlo- SDC-AC-CBRN (V2) ProPak-fx-EZ-Flo-CBRN fitted with Split demand valve and Airline attachment*
2031984 PROPAK-fx-EZ-Flo- Y2C-CBRN (V2) ProPak-fx-EZ-Flo-CBRN fitted with Y-piece (2 CEN socket) in demand valve hose

* Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment as well as Airline.
