For over 30 years its innovative engineering and
customer led product evolution has enabled the
range to adapt, respond and predict the ever
changing needs of professional fire services
around the world.
With over one million firefighters worldwide
trusting in Scott's equipment and backed by
dedicated customer support, Scott's SCBA is the
firefighters preferred choice.

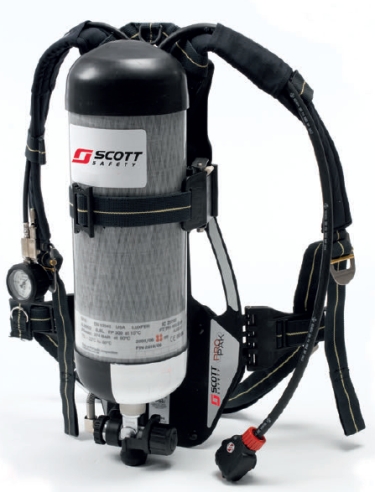

The Scott ProPak is the latest lightweight self
contained breathing apparatus from Scott
Safety and offers the highest levels of respiratory
protection available.
 Approved to EN137: 2006 Type II, incorporating
the stringent Flame Engulfment Test, ProPak is
refined to a level of performance demanded by the
professional firefighter.
100% Kevlar webbing with wrap-around
harnesses
The highest possible specification providing the
highest level of flame retardancy
Trusted and proven high performance
pneumatics
Supplies exceptionally high airflow, simple to
maintain and fully user serviceable
Easy upgrade path
Following the Scott tradition, all elements of the
set are designed to allow future upgrade with
minimal cost
Rapid connect cylinder band that allows adjustment or change out of cylinder in
seconds
Tempest demand valve with proven performance and dependability, comfortable and responsive delivery of air and easy to breathe
Easy adjust parachute style buckles with quick pull forward action allows easy in-transit adjustment and large buckles allow for easy operation with gloved
hands and fast donning and doffing
Compact positive pressure
demand valve featuring servoassisted,
tilting diaphragm
mechanism with low inspiratory
resistance and responsive
dynamic performance, automatic
first breath actuation and hands
free bypass facility.
Specifications
Datasheet
|
Reducing Valve
First stage pressure reducing
valve featuring non-adjustable,
spring loaded piston mechanism
and outlet supply protected by
pressure relief valve.
Pressure Indicator &
Warning Whistle
Bourdon tube type dial indicator
Heat and Impact resistant
polycarbonate lens
Hoses
Stainless steel swivel hose fittings
Medium pressure hose
Maximum working pressure 16 bar
Minimum burst pressure 80 bar
High pressure hose
Maximum working pressure 450
bar
Minimum burst pressure 800 bar
Communications
Sabre-Com is a unique radio
communications interface that
fully integrates with your existing
radio and preferred choice of
Scott facemask. Sabre-Com is
intrinsically safe and approved to
EN136 Class 3.
Options
Scott ProPak can be specified in
many configurations including
Duo, Split Demand Valve Coupling
(SDC) and attachments for
Airline, which can also be used for
Rescue Second Man (RSM) and
Decontamination.
Pneumatic System
At the heart of the ProPak set is a simple and
reliable two-stage pneumatic system. A first
breath activated positive pressure demand valve
provides low breathing resistance and excellent
dynamic performance - particularly at high
flow rates. A first stage pressure reducing valve
features only two moving parts and accepts
cylinders pressures of up to 300 bar without
adjustment.
|
