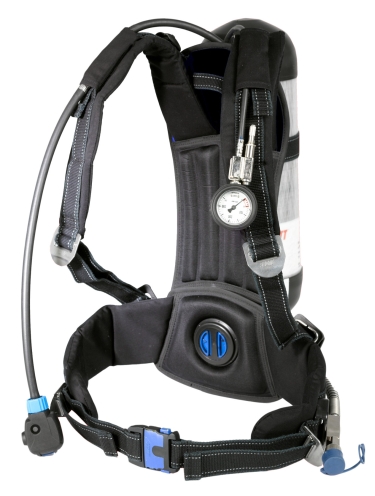

The Scott ACSfx is an open circuit, self-contained, compressed air breathing apparatus. It consists of an adjustable back plate, padded carrying harness and pneumatic system, containing a cylinder connector, reducer, pressure gauge, whistle and demand valve.

The ACSfx can be configured in a number of different ways with various size single cylinders. There are also a range of variants available including Airline (AC), and Split Demand Valve Coupling (SDC).

The ACSfx is used in conjunction with a range of composite or steel cylinders and the choice of Vision 3, Panaseal, Panavisor or Promask PP facemask.

Applications

The ACSfx is specifically designed as a professional fire fighting SCBA, but is also suitable for providing respiratory protection in any IDLH environment.

SPECIFICATIONS

2018329 ACSFX ACSfx self contained breathing apparatus for single cylinder use, comprising lightweight flexible backplate with Kevlar blend cylinder band and fully adjustable padded body harness with swivel movement waistbelt. Fully adjustable waistbelt can be simply moved to 3 positions to provide 3 sizes of backplate to cater for different sized users.
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single high pressure 200/300 bar cylinder connector.
Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus features full back padding. Webbing contains reflective thread.
Apparatus accepts full range of Scott breathing apparatus cylinders from 4.7 to 9 litres capacity, 200 or 300 bar.*
Apparatus is CE Marked to EN137:2006 Type II
Apparatus supplied less facemask, please order desired mask separately.
*Please note to maintain the cylinder valve handwheel on the normal right hand side of the SCBA please order the cylinders fitted with the right angled valve. These cylinders have the suffix -RA

2018363 ACSFX-AC ACSfx fitted with Airline attachment*.

2018361 ACSFX-SDC ACSfx fitted with Split demand valve

2018365 ACSFX-AC-SDC ACSfx fitted with Split demand valve and Airline attachment*.

2018864 ACSFX-Y2C ACSfx fitted with Y-piece (2 CEN socket) in demand valve hose

* Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment as well as Airline.

-QC Cylinder Quick Connect on reducer. Please add suffix -QC to required part number to receive a set fitted with the Quick connect system. Please note cylinder adaptor 2020714 also required - sold seperately.

-DUO As above with modified cradle and extended cylinder band to allow single or two cylinder use (Man-200 or Man-300 also required)
