3M ProPak-F-EZ-FLO Self Contained Breathing Apparatus

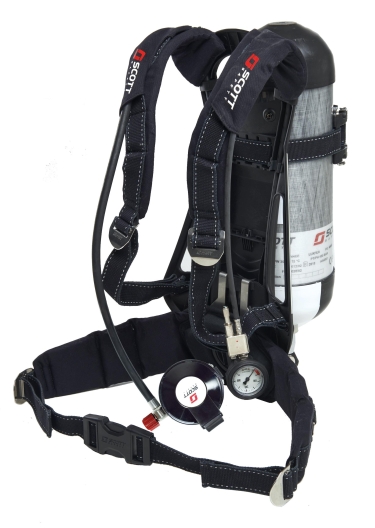

The 3M ProPak-F-EZ-FLO is a Type 2 open circuit, self-contained, compressed air breathing
apparatus. It consists of a back plate, padded carrying harness and pneumatic system, containing a
cylinder connector, reducer, pressure gauge, whistle and demand valve.
The ProPak-F-EZ-FLO can be configured in a number of different ways with various size single
cylinders. There are also a range of variants available including Airline (AC), Split Demand Valve
Coupling (SDC or Y2C), Quick Connect Option or Duo variants.
The ProPak-F-EZ-FLO is used in conjunction with AV3000HT facemask and a choice of composite or
steel cylinders.
APPLICATIONS
The ProPak-F-EZ-FLO is specifically designed as a professional fire fighting SCBA, but is also suitable
for providing respiratory protection in any IDLH environment.
Datasheet
ProPak Range
|
|
Ordering Information
|
ProPak-f-EZ-Flo
2031958 PROPAK-f-EZ-Flo
(V2)
Self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate
with cylinder band and fully adjustable padded body harness.
Two stage pneumatic system comprising EZ-Flo positive pressure demand valve with bypass:
shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with
single high pressure 200/300 bar cylinder connector.
Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus
features lumbar padding. Webbing contains reflective thread.
Apparatus is CE Marked to EN137:2006 Type 2
Apparatus supplied less facemask, please order AV3000HT facemask seperately.
2031960 PROPAK-f-EZ-Flo-
AC (V2)
ProPak-f-EZ-Flo fitted with Airline attachment*
2031961 PROPAK-f-EZ-Flo-
SDC (V2)
ProPak-f-EZ-Flo fitted with Split demand valve
2031962 PROPAK-f-EZ-Flo-
SDC-AC (V2)
ProPak-f-EZ-Flo fitted with Split demand valve and Airline attachment*
2027472 PROPAK-f-EZFloY2C
(V2)
ProPak-f-EZ-Flo fitted with Y-piece (2 CEN socket) in demand valve hose
ProPak-f-EZ-Flo CBRN
2031949 PROPAK-f-EZ-Flo-
CBRN (V2)
Self contained breathing apparatus for single cylinder use, comprising lightweight rigid backplate
with cylinder band and fully adjustable padded body harness.
Two stage pneumatic system comprising EZ-Flo positive pressure demand valve with bypass:
shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with
single high pressure 200/300 bar cylinder connector.
Harness fabricated from Kevlar and Pyrogard blend webbing and Proban material and apparatus
features lumbar padding. Webbing contains reflective thread.
Apparatus is CE Marked to EN137:2006 Type 2 and BS8468-1
Apparatus supplied less facemask, please order AV3000HT facemask seperately.
2031951 PROPAK-f-EZ-Flo-
AC-CBRN (V2)
ProPak-f-EZ-Flo-CBRN fitted with Airline attachment*
2031952 PROPAK-f-EZ-Flo-
SDC-CBRN(V2)
ProPak-f-EZ-Flo-CBRN fitted with Split demand valve
2031953 PROPAK-f-EZ-Flo-
SDC-AC-CBRN
(V2)
ProPak-f-EZ-Flo-CBRN fitted with Split demand valve and Airline attachment*
2031956 PROPAK-f-EZ-Flo-
Y2C-CBRN (V2)
ProPak-f-EZ-Flo-CBRN fitted with Y-piece (2 CEN socket) in demand valve hose
* Please note the airline attachment has both air in and air out functionality so therefore serves as
both an RSM and decontamination attachment as well as Airline.
|
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
