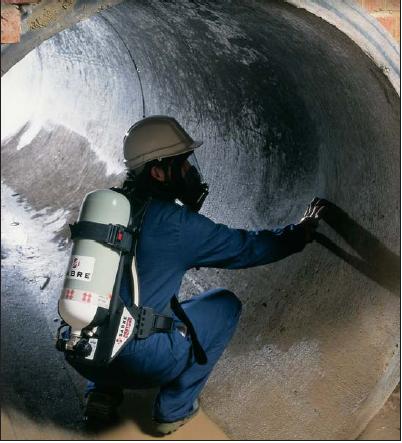

The Sabre Safety Contour 100, in combination with the
Vision 3 facemask, offers wearers and specifiers new
levels of comfort, improved fields of vision, true
operational flexibility and low cost, simple
maintenance in a self contained breathing apparatus
that fully reflects Sabre Safety's stated philosophy:
to produce equipment that our customers will wear
by choice, not just by necessity.
BACKPLATE
AND
HARNESS
The ergonomic injection
moulded composite backplate
is the heart of the Sabre Safety
Contour 100.
The lightweight
webbing harness ensures
optimal load distribution,
balance, comfort and reduced
wearer fatigue.
PNEUMATIC
SYSTEM
The simple, fail safe, spring
loaded piston reducer is fully
serviceable and offers low
service and maintenance
costs.
All hose connections
features Sabre Safety's simple and
proven U-clip/O-ring design,
which is very reliable and simple to maintain. Different
high and medium pressure
hose connections ensure
foolproof assembly.
The robust, luminous
pressure gauge and the
whistle feature swivel hose
fittings are shoulder mounted
for easy wearer reference.
DOWNLOADS
Product Literature
Product Literature (Spanish)
Manual
Spare Parts List
Product Datasheet
|
FACEMASKS
The Sabre Safety Contour 100 is
designed for use with either
the Vision 3, PanaSeal or
PanaVisor facemasks.
Sabre Safety
masks are manufactured from
non dermatitic materials and
feature Sabre Safety's side mounted
demand valve and front
speech diaphragm.
DEMAND VALVE
The Tempest automatic
positive pressure demand
valve features low breathing
resistance and unsurpassed dynamic performance;
particularly at high flow rates.
The compact, low profile
shape minimises snag
hazards, with the bayonet
fitting being simply
connected and featuring a
safety locking catch.
A true bypass facility
simplifies checking and
donning procedures and
ensures fail safe operation.
The Sabre Safety Tempest demand
valve is fully user serviceable
and offers low maintenance
and servicing costs.
PART NUMBERS
 1045573 CTR-100 Contour self contained breathing apparatus for single cylinder use, comprising light weight anti-static
composite backplate with Kevlar cylinder band and fully adjustable unpadded body harness,
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve with bypass,
shoulder mounted pressure indicator and 55 bar warning whistle: first stage pressure reducer with single
high pressure cylinder connector.
Harness fabricated from flame retardent 50% Kevlar blend materials and features a half lumber pad.
Apparatus accepts full range of Scott breathing apparatus cylinders from 4 7 to 11 0 litres capacity, 200 or
300 bar.
Apparatus is CE Marked to EN137:2006 Class I
1045575 CTR-110 Apparatus as above except with CEN decontamination attachment.
1045576 CTR-120 Apparatus as above except with CEN airline attachment
2007104 2007104 Apparatus as above except with Foster/HansenMil Spec airline attachment (CTR-120 Foster/hansen mil
spec)
2015848 2015848 Apparatus as above except with Hansen HK airline attachment (CTR-120 Hansen HK)
|
