EN137:2006 Type 2 MED Approved Breathing Apparatus MAJOR COMPONENTS
Compact positive pressure demand valve featuring servo-assisted, tilting
diaphragm mechanism with low inspiratory resistance and responsive
dynamic performance, automatic first breath actuation and hands free
bypass facility.
REDUCING VALVE
First stage pressure reducing valve featuring non-adjustable, spring
loaded piston mechanism and outlet supply protected by pressure relief
valve.
HOSES
Stainless steel swivel hose fittings Specifications PRESSURE INDICATOR & WARNING WHISTLE
Bourdon tube type dial indicator COMMUNICATIONS
Designed to be used with Sabre Safety's range of positive pressure full facemasks, the Sabrecom2 is a radio communication interface. OPTIONS
The Sabre Safety ProPak-I can be specified in many configurations
including Split Demand Valve Coupling (SDC), Y-Piece (Y2C) and
attachments for Airline, which can be used for Rescue Second Man and
Decontamination.
Ordering Information
Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.

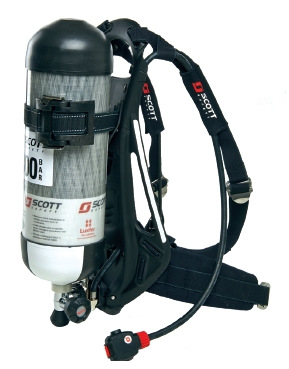

Sabre Safety ProPak-I Firefighting Breathing Apparatus
Compliance set for Industrial Professional Fire Fighting or Oil & Gas markets
Rigid backframe construction
Easily removable pneumatics
Simple to service and maintain
The Sabre Safety ProPak-I has been developed for use in the
Industrial, Professional Fire Fighting
or Oil & Gas markets as a fire fighting set.
As a testement to the quality of the Sabre Safety ProPak range, all ProPak breathing apparatus has been
approved to EN137:2006 Type 2,
incorporating the stringent Full
Flame Engulfment Test, and to the
9th amendment of the MED which gives the Sabre Safety ProPak the latest approval for the Marine industry.
Medium pressure hose
High pressure hose
Medium working pressure 16 bar
Minimum burst pressure 80 bar
Maximum working pressure 450 bar
Minimum burst pressure 800 bar
Heat and Impact resistant polycarbonate lens
The Sabrecom2 is approved to EN136 class and meets the stringent flame and radiant heat test requirements. The Sabrecom2 is also fully integrated and ready to use.
2027166 PROPAK-i (V2) ProPak-i self contained breathing apparatus for single cylinder use, comprising lightweight
rigid backplate with cylinder band and fully adjustable body harness:
Two stage pneumatic system comprising Tempest automatic positive pressure demand valve
with bypass: shoulder mounted pressure indicator and 55 bar warning whistle: first stage
pressure reducer with single high pressure 200/300 bar cylinder connector.
Harness fabricated from hard wearing flame retardant Kevlar blend webbing and apparatus
features unpadded upper shoulder straps a padded waistbelt and lumbar padding
Apparatus accepts full range of Scott breathing apparatus cylinders from 4.7 to 9 litres
capacity, 200 or 300 bar.*
Apparatus is CE Marked to EN137:2006 Type 2 and MED approved
Apparatus supplied less facemask, please order desired mask separately.
*Please note to maintain the cylinder valve handwheel on the normal right hand side of the SCBA please order the cylinders fitted with the right
angled valve. These cylinders have the suffix -RA
2027167 PROPAK-i-AC (V2) ProPak-i fitted with Airline attachment*.
2027168 PROPAK-i-SDC (V2) ProPak-i fitted with Split demand valve
2027170 PROPAK-i-SDC-AC (V2) ProPak-i fitted with Split demand valve and Airline attachment*.
2027169 PROPAK-i-Y2C (V2) ProPak-i fitted with Y-piece (2 CEN socket) in demand valve hose
* Please note the airline attachment has both air in and air out functionality so therefore serves as both an RSM and decontamination attachment
as well as Airline.
