TSI 4070 Certifier FA & 4080 Certifier FA Plus Ventilator Test Systems

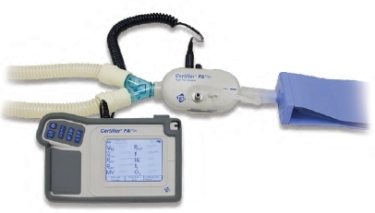

CERTIFIER FA PLUS FLOW ANALYZER SYSTEM

Certifier FA Plus is the full-feature system capable of testing virtually all models of ventilators: adult, pediatric, anesthesia, neonatal and high-frequency.

Highlights:

  Color touch screen graphical user interface
  Real-time graphing mode
  Bi-directional flow measurement
  Data storage using SD Flash card and internal memory
  Stored data accessible through USB interface
  Report printing capability
  Rechargeable battery plus AC operation

Test Parameters:

  Flow
  Peak & Minimum Flow
  Volume (Inhaled and Exhaled)
  Minute Volume
  Low Pressure (Differential)
  Peak & PEEP Pressure
  Mean Airway Pressure
  High Pressure
  Barometric Pressure
  Inspiratory Time
  Expiratory Time
  I:E Ratio
  Respiratory Rate
  Gas Temperature
  Oxygen Concentration (with optional 4073 Kit)

Ordering Information


CERTIFIER FA PLUS

4080 High-Flow Standard Kit
4073 Oxygen Sensor Kit
4082 Low-Flow Module
1208061 Extra battery pack and charger kit
1303860 Printer cable

CERTIFIER FA

4070 High-Flow Standard Kit
4073 Oxygen Sensor Kit
4072 Low-Flow Module
1319288 Hard shell carrying case



CERTIFIER FA VENTILATOR TEST SYSTEM

Certifier FA is a low-cost test system capable of testing multiple parameters of ventilator performance.

Highlights:

  Simple, easy to read, user interface
  Backlit LCD display
  Entire kit weighs less than 3 lbs (1.4 Kg)
  Volumes and flow in BTPS, ATP, or STP

Test Parameters:

  Flow
  Peak Flow
  Volume
  Stacked Volume
  Minute Volume
  Low Pressure
  Peak & PEEP Pressure
  Barometric Pressure
  Inspiratory Time
  I:E Ratio
  Respiratory Rate
  Oxygen Concentration (with optional 4073 Kit)


Data Sheet

Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
