TSI VELOCICALC Air Velocity Meters

Models 9515 & 9525


The Models 9515 and 9525 are the economical choice for a digital Air Velocity Meter, without compromising accuracy or precision. Professionals find them the ideal tool for face velocity measurements in fume hoods, spray booths, or for IAQ and ventilation system checks.

The Model 9515 features a 40-inch (101.6 cm) telescoping integrated probe for difficult to reach measurements.

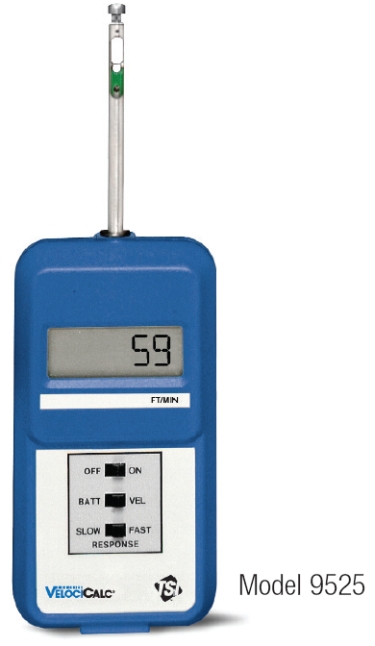

The Model 9525 has a 3-inch retractable probe and is UL listed as intrinsically safe for use in hazardous locations for Divisions 1 and 2 in Class I, Groups C and D; Class II, Groups E, F and G; and Class III.

Applications

  HVAC system performance
  Commissioning
  Plant maintenance

Features and Benefits

  Accurate air velocity measurement. Model 9515 range 0 to 4,000 ft/min (0 to 20 m/s). Model 9525 range 0 to 2,000 ft/min (0 to 10 m/s)
  Integrated probe attachment
  Easy to read display
  Intrinsically safe (9525 only)
  Calibration certificate included


Data Sheet
9515 Manual
9525 Manual



Please note - Product designs and specifications are subject to change without notice. The user is responsible for determining the suitability of this product.
