Simultaneously monitor and display up to five atmospheric hazards with the GasAlertMicro 5.

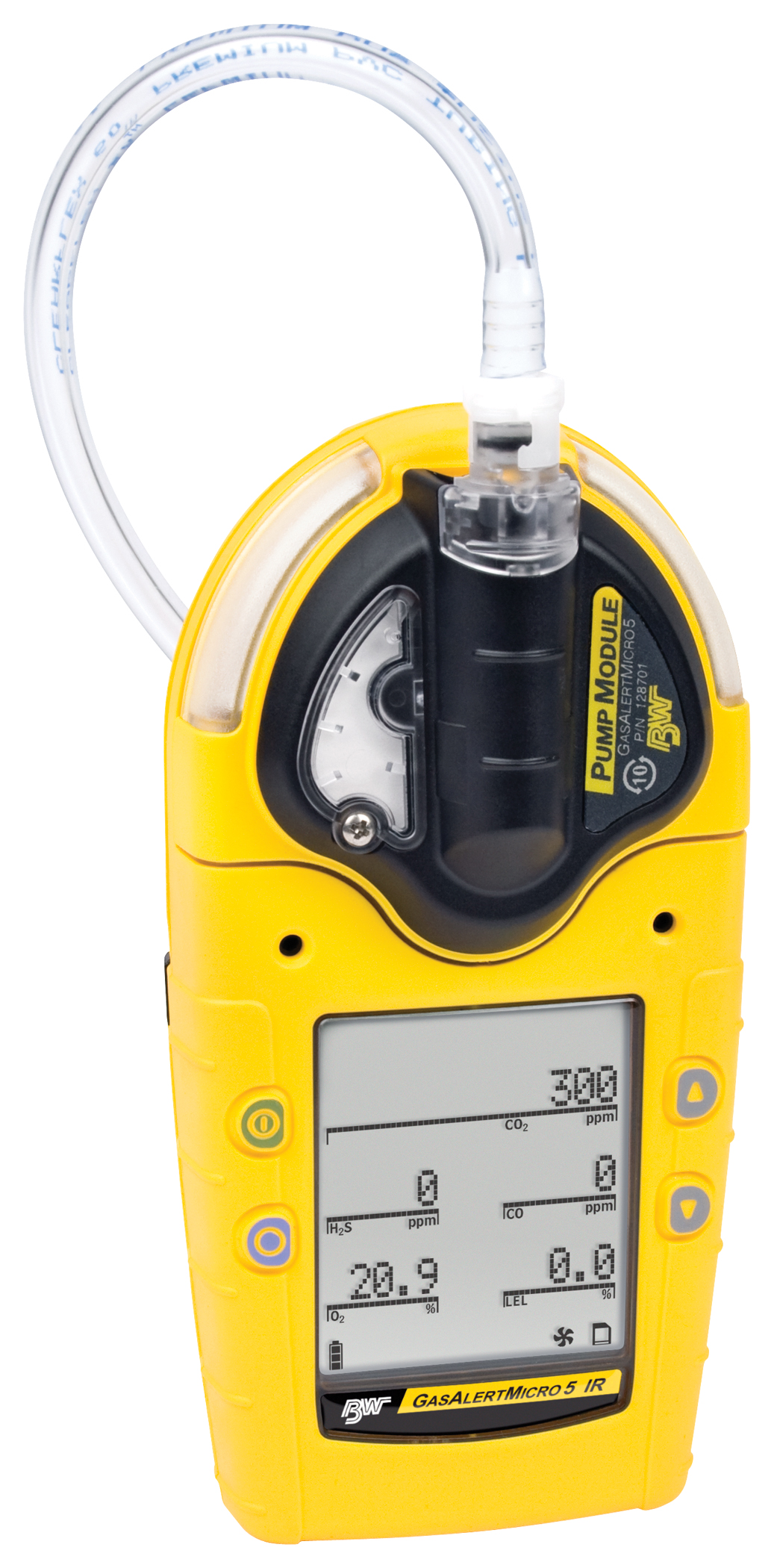

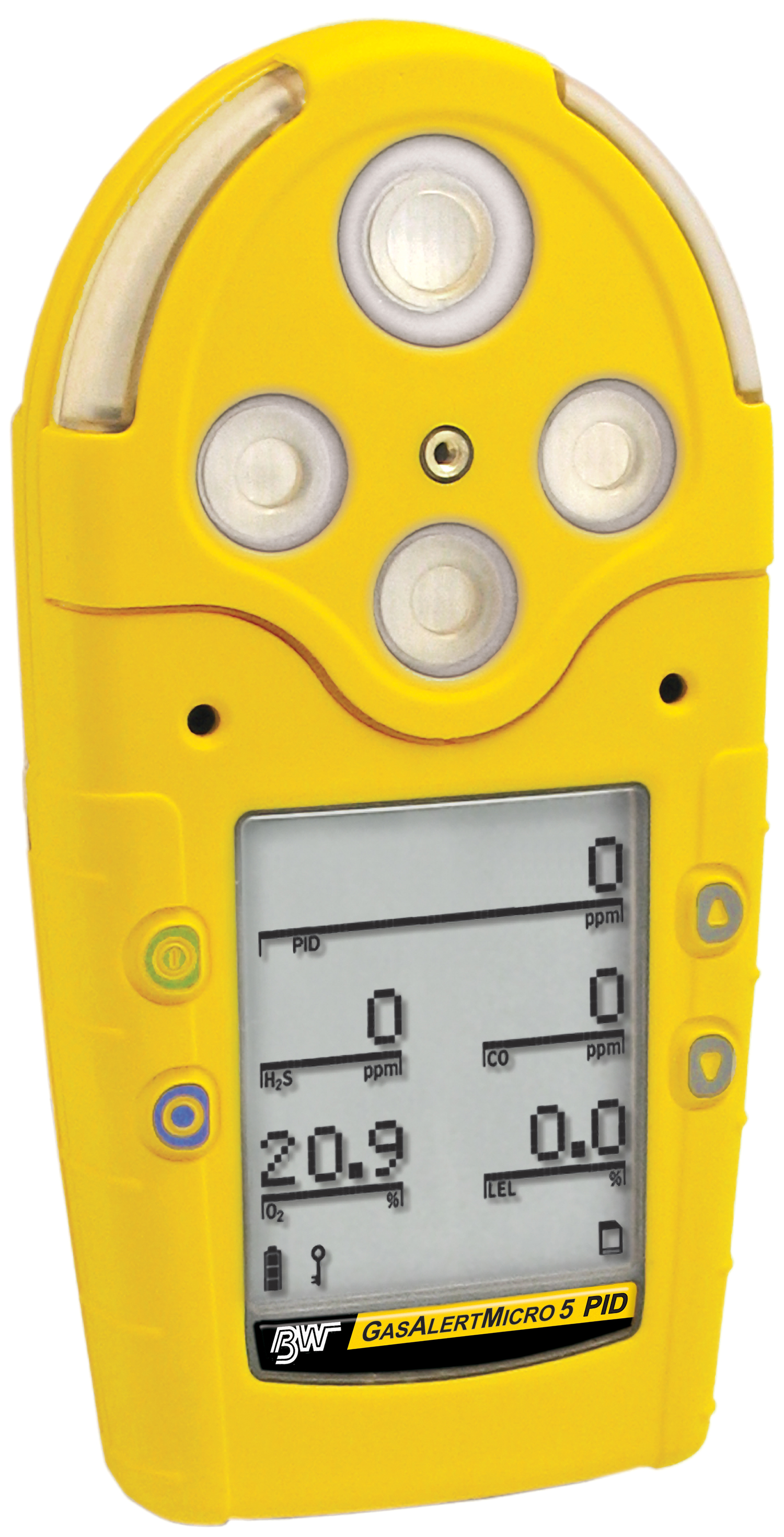

Adaptable to a variety of applications, the GasAlertMicro 5 has an extensive selection of user-settable field options and is available as either a standard toxic gas model, a PID model for the detection VOCs, or an IR model for CO2 detection.

Use the passcode function to prevent unauthorized modifications of the instrument's settings. Compatible with Honeywell Analytics's MicroDock II automatic test and calibration system, the GasAlertMicro 5 is unparalleled in its versatility, performance and overall value.

Protect Yourself

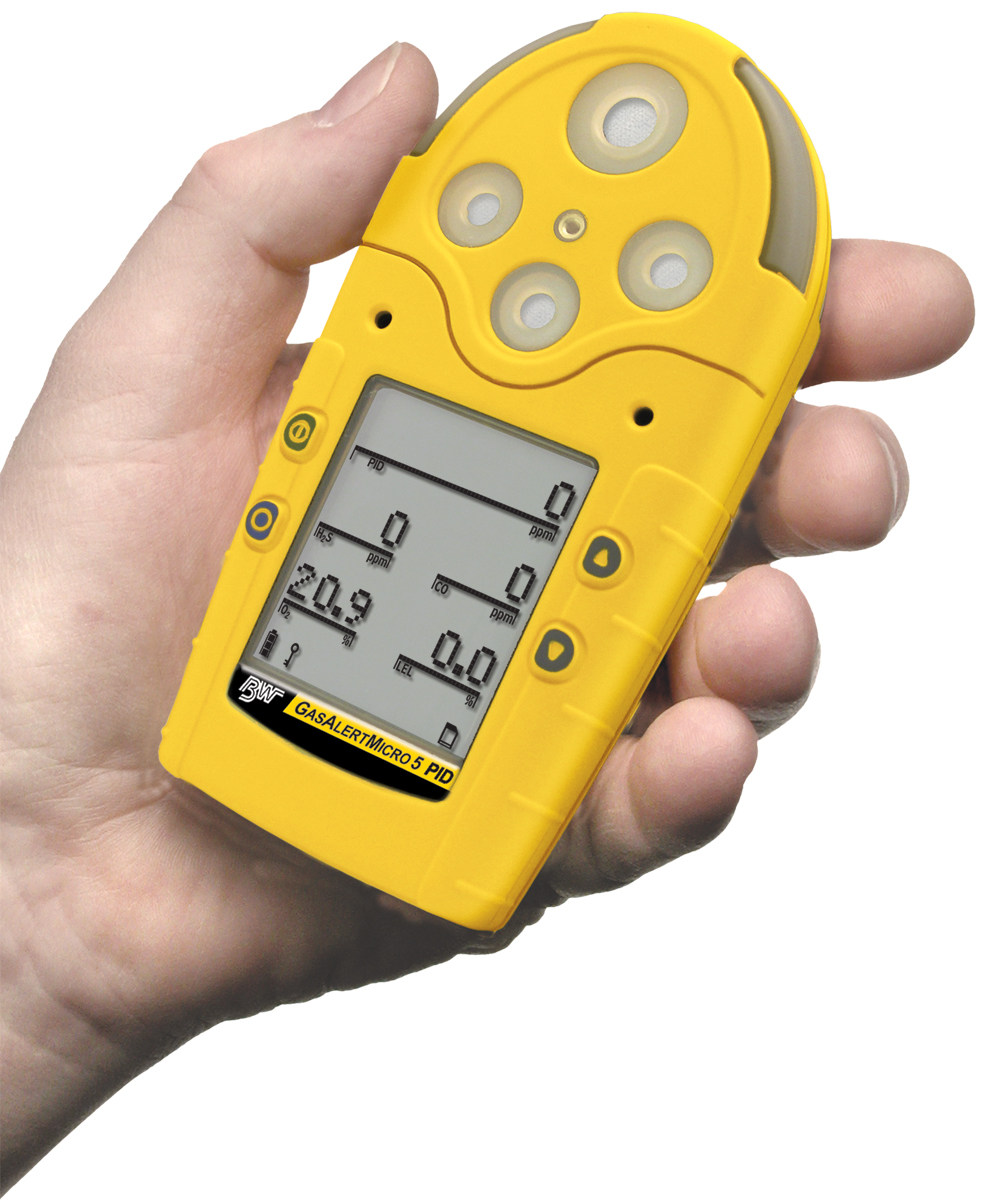

  Compact (5.7 x 2.9 x 1.5 in. / 14.5 x 7.4 x 3.8 cm) and lightweight (13.1 oz. / 370 g).

  Rugged, highly water-resistant design.

  Continuous LCD shows simultaneous gas concentrations for five gases.

  Integral concussion-proof enclosure for the most rugged environments.

  Integral motorized pump option for remote sampling (optional).

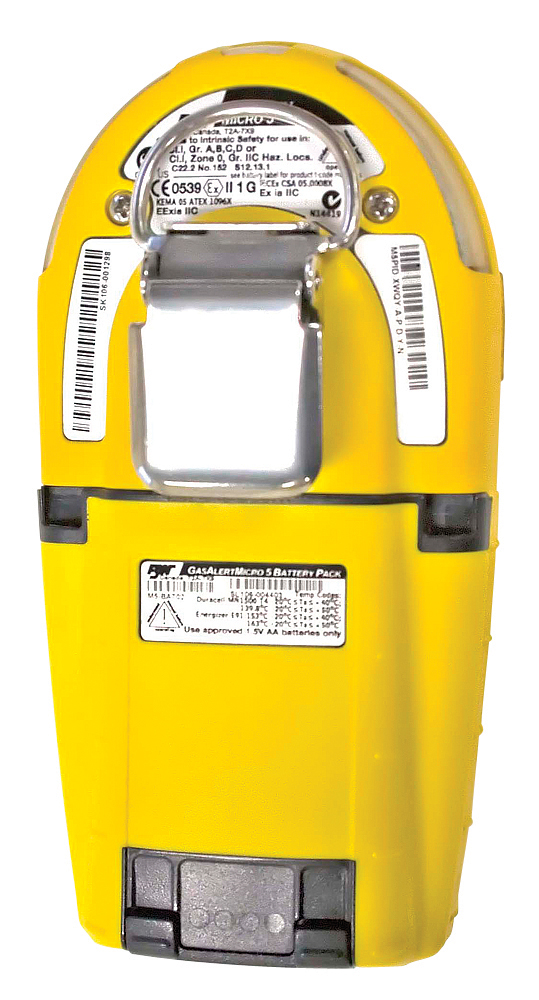

  Two power options: three AA alkaline batteries or a rechargeable battery pack.

  Provides 95 dB alarm tone and two bright wide-angled alarm bars.

  Equipped with internal vibrating alarm for high noise areas.

  Three backlight options: standard-activates in low light (auto), in alarm (auto) and reactivates on-demand; alarm only-activates in alarm conditions and reactivates on-demand; stealth mode.

  Four alarm levels: instantaneous Low and High Alarm for all gases; TWA (time weighted average) and STEL (short term exposure limit) for toxic gases.

  Multi-language support in English, French, German, Spanish and Portuguese.

  Simple automatic calibration procedure; compatible with Honeywell Analytics Micro Dock II system.

  Records TWA, STEL and maximum exposures to gas and displays readings on command.

  User selectable field options include: confidence beep, pass code protection, latching alarm, calibration due date and "SAFE" display function, stealth mode, selectable ppm resolution for some gases (e.g. SO2 0.1 ppm).

  Full function self-test of: sensor, battery and circuit integrity; and audible / visual alarms.

High Resolution Photos

Note - Generation 2 pumps are compatible with older GasAlertMicro 5 Series and X5 instruments. Instruments shipped prior to 10th April 2010, must be upgraded to the latest firmware version (version 37, 23c, 22i released on 23rd March 2010 or higher). This upgrade includes important new safety routines.
